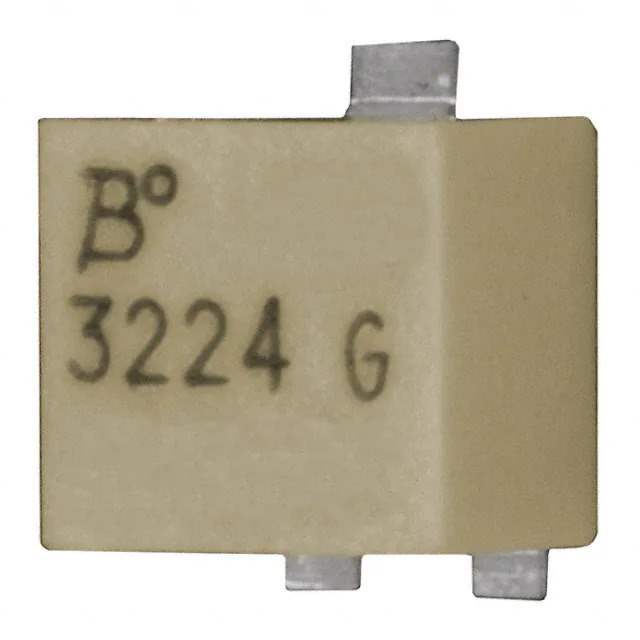

3224G-1-202E Real Image
Same model may have multiple batches, images only for reference.

3224G-1-202E

Part No 3224G-1-202E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 2K OHM 0.25W GW SIDE ADJ / 2 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
Datasheet
3224G-1-202E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3224 - Sealed
Package Tape & Reel
Product Status Active
Resistance 2 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style Gull Wing
Size / Dimension Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm)
Base Product Number 3224G
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855640-3224G-1-202E
Ultra Librarian 3D Model Ultra Librarian 3224G-1-202E CAD Model

Description

The 855640-3224G-1-202E is a high-quality potentiometer manufactured by Bourns Inc.

  • Series: Trimpot® 3224 - Sealed
  • Application: Surface Mount
  • Size: 0.181" x 0.138" (4.60mm x 3.50mm)
  • Power Rating: 0.25W (1/4W)
  • Resistance: 2 kOhms
  • Tolerance: ±10%
  • Adjustment Type: Side Adjustment
  • Turns: 12
  • Resistive Material: Cermet
  • Termination Style: Gull Wing
  • Packaging: Tape & Reel
