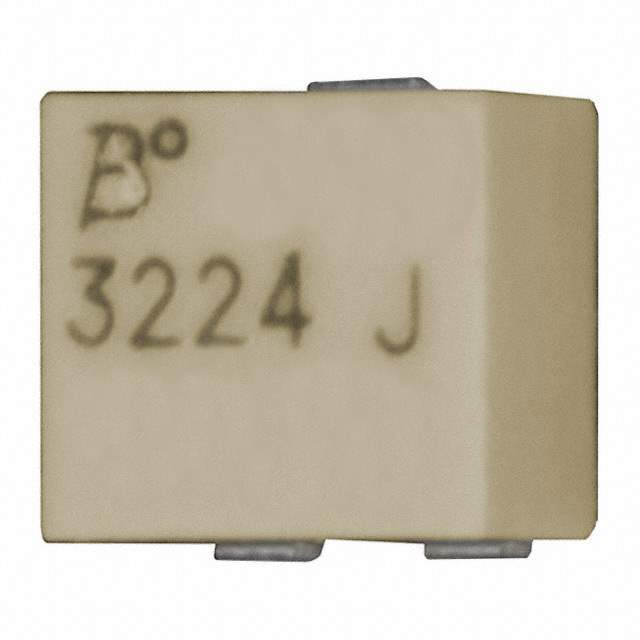

3224J-1-503E Real Image
Same model may have multiple batches, images only for reference.

3224J-1-503E

Part No 3224J-1-503E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Featured Products Bulletin | TRIMMER 50KOHM 0.25W J LEAD SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel
Resistance 50 kOhms
Power (W) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style J Lead
Parts Dimension Rectangular - 0.181" x 0.138" Face x 0.146" H (4.60mm x 3.50mm x 3.71mm)
Family Part Number 3224J
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128121-3224J-1-503E
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3224J-1-503E CAD Model

Description

The 3224J-1-503E is a side adjustment, cermet potentiometer from Bourns that comes in a rectangular package.

  • Resistance: 50 kOhms
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 12
  • Mounting: SMD technology
  • Power Rating: 0.25W
  • Dimensions: 0.181" x 0.138" face x 0.146" H (4.60mm x 3.50mm x 3.71mm)
