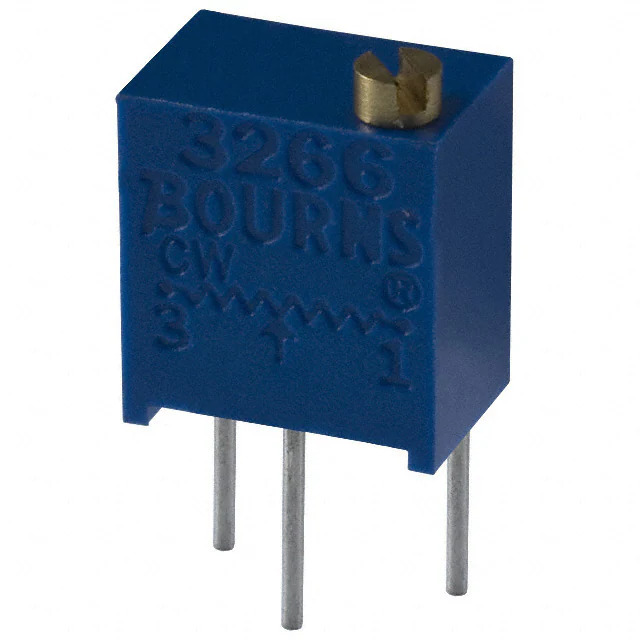

3266W-1-253LF Bourns Inc.
Same model may have multiple batches, images only for reference.

3266W-1-253LF

Part No 3266W-1-253LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 25K OHM 0.25W PC PIN TOP / 25 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
Datasheet
3266W-1-253LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3266 - Sealed
Package Tube
Product Status Active
Resistance 25 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number 3266W
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1354444-3266W-1-253LF
Ultra Librarian 3D Model Ultra Librarian 3266W-1-253LF CAD Model

Description

The Bourns Inc. 3266W Trimpot® 3266 - Sealed is a high-quality potentiometer designed for various applications.

  • Resistance: 25 kOhms
  • Power Rating: 0.25W
  • Size: 0.250" x 0.170" (6.35mm x 4.32mm)
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 12
  • Adjustment: Top
  • Resistive Material: Cermet
  • Mounting Type: Through Hole
  • Termination: PC Pins
  • Packaging: Tube
  • REACH: Affected
