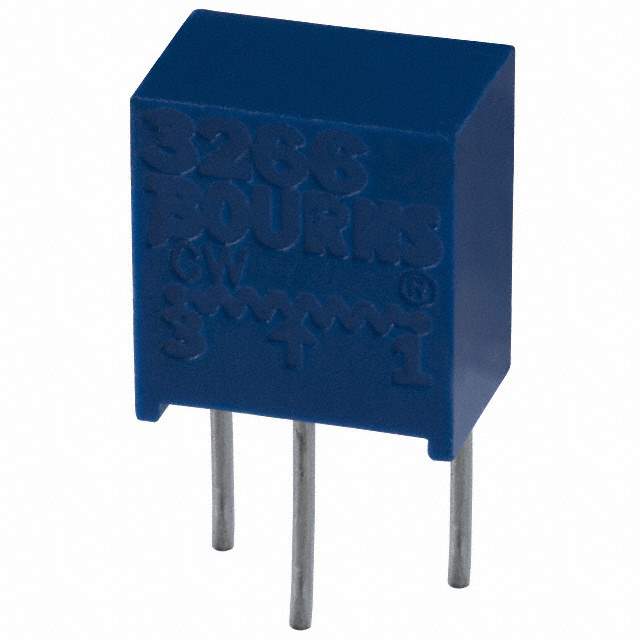

3266X-1-502LF Real Image
Same model may have multiple batches, images only for reference.

3266X-1-502LF

Part No 3266X-1-502LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.25W PC PIN SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Tube
Resistance 5 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
Part Number Series 3266X
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806581-3266X-1-502LF
Ultra Librarian 3D Model Ultra Librarian 3266X-1-502LF CAD Model

Description

The Bourns Inc. 3266X series trimming potentiometer is a through-hole adjustment type potentiometer with 12 turns and a resistance of 5 kOhms.

  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W
  • Package Dimensions: Rectangular - 0.250" x 0.170" face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
  • Actuator Type: Side Adjustment
  • Adjustment Type: User-defined
  • Other Name: 4116R1393LF
