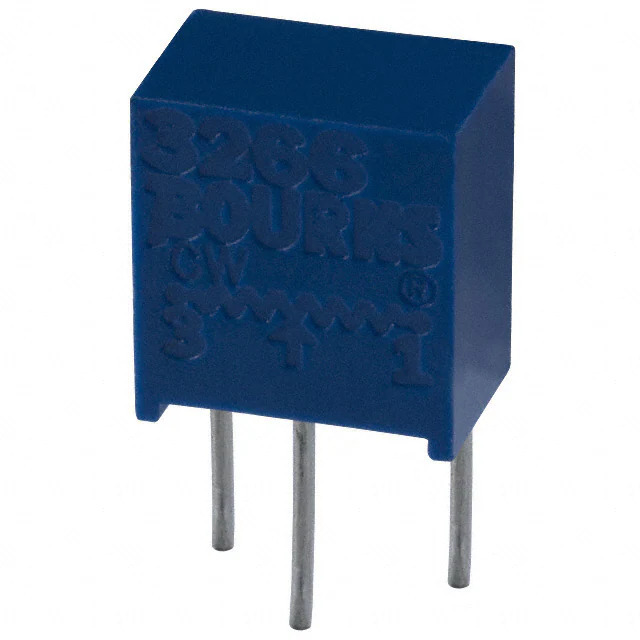

Same model may have multiple batches, images only for reference.
3266X-1-504 Bourns Inc.
Same model may have multiple batches, images only for reference.

3266X-1-504

Part No 3266X-1-504
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.25W PC PIN
Datasheet
3266X-1-504 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3266 - Sealed
Package Tube
Product Status Active
Resistance 500 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number 3266X
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375030-3266X-1-504
Ultra Librarian 3D Model Ultra Librarian 3266X-1-504 CAD Model

Description

The Bourns Inc. Trimpot® 3266 - Sealed is a high-quality potentiometer designed for precise control in electronic circuits. With a resistance of 500 kOhms, this potentiometer allows for fine adjustments in voltage or current.

  • Manufacturer: Bourns Inc.
  • Product Name: Trimpot® 3266 - Sealed
  • Resistance: 500 kOhms
  • Power Rating: 0.25W
  • Shape: Rectangular
  • Size: 0.250 inches x 0.170 inches (6.35mm x 4.32mm)
  • Tolerance: ±10%
  • Mounting Type: Through Hole
  • Termination: PC Pins
  • Turns: 12
  • Adjustment Type: Side Adjustment
  • Resistive Material: Cermet
