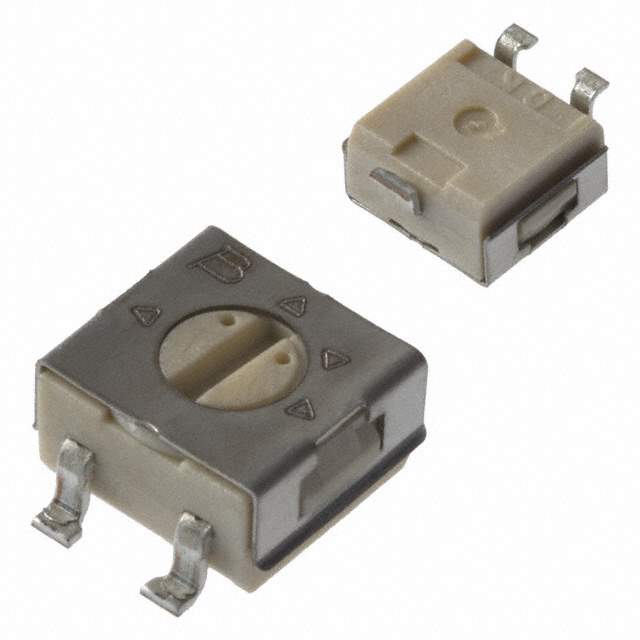

3314G-1-203E Real Image
Same model may have multiple batches, images only for reference.

3314G-1-203E

Part No 3314G-1-203E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.25W SMD
Datasheet
3314G-1-203E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 20k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Win Source Part Number 092411-3314G-1-203E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 3314G-1-203E CAD Model

Description

Product Description

The 3314G-1-203E is designed for efficient performance in high-accuracy demanding environments. Known for its reliability, it serves a spectrum of applications, from commercial to industrial projects.

Features and Benefits

  • Exceptional Accuracy: Provides precise resistance control.
  • Wide Application Range: Suitable for varied uses from consumer electronics to industrial machines.
  • Energy-Efficient: Operates with minimal power consumption.

Applications and Projects

  • Consumer Electronics
  • Medical Devices
  • Renewable Energy Systems
