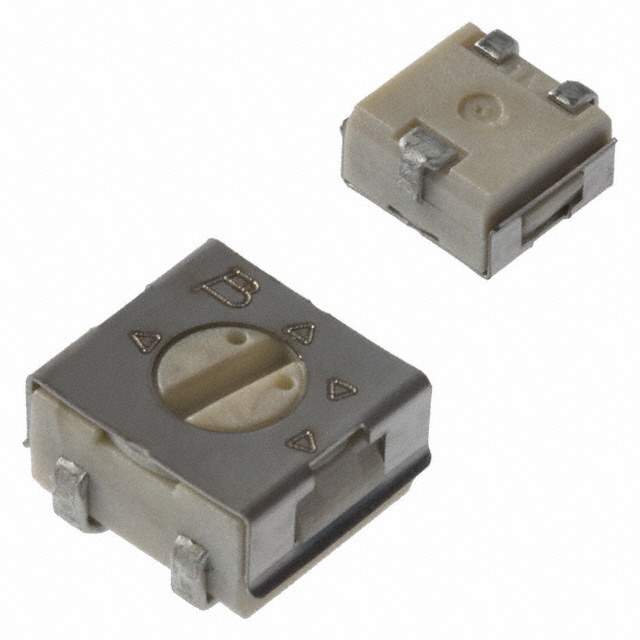

3314J-1-201E Real Image
Same model may have multiple batches, images only for reference.

3314J-1-201E

Part No 3314J-1-201E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 200 OHM 0.25W SMD
Datasheet
3314J-1-201E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 200
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Win Source Part Number 006091-3314J-1-201E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3314J-1-201E CAD Model

Description

Product Overview

The 3314J-1-201E is a high-quality trimmer potentiometer designed for precision tuning and adjustments in electronic circuits. Known for its reliability, the 3314J-1-201E offers seamless integration into various electronic devices, ensuring optimal performance and longevity.

Features and Benefits

  • Resistance Value: 200 ohms
  • Compact design for space-saving installations
  • High precision adjustment capabilities
  • Long-term stability and reliability
  • RoHS compliant

Applications

  • Audio Equipment Calibration
  • Communication Devices
  • Industrial Control Systems
  • Temperature Sensors
  • Automotive Electronics

Additional Information

The 3314J-1-201E is ideal for projects where precise control is necessary. It is designed to withstand a wide range of environmental conditions, making it suitable for both industrial and consumer applications.
