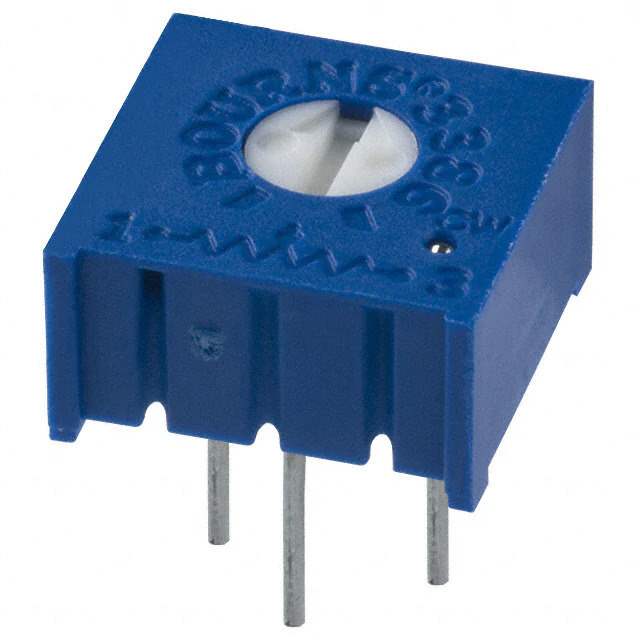

3386F-1-253LF Real Image
Same model may have multiple batches, images only for reference.

3386F-1-253LF

Part No 3386F-1-253LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 25K OHM 0.5W PC PIN TOP / 25 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet
3386F-1-253LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3386 - Sealed
Package Tube
Product Status Active
Resistance 25 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
Base Product Number 3386F
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855734-3386F-1-253LF
Ultra Librarian 3D Model Ultra Librarian 3386F-1-253LF CAD Model

Description

The 855734-3386F-1-253LF is a trimmer potentiometer from Bourns Inc.'s Trimpot® 3386 - Sealed series.

  • Function: Variable Resistor
  • Resistance: 25 kOhms
  • Tolerance: ±10%
  • Mounting: Through-hole
  • Termination: PC pins
  • Size: 0.375" x 0.375" (9.53mm x 9.53mm)
  • Power Rating: 0.5W (1/2W)
  • Material: Cermet
  • Turns: 1
  • Adjustment: Top
  • Package: Tube
  • Pieces per Tube: 100
  • Status: Active
  • ECCN: EAR99
  • REACH: Unaffected
