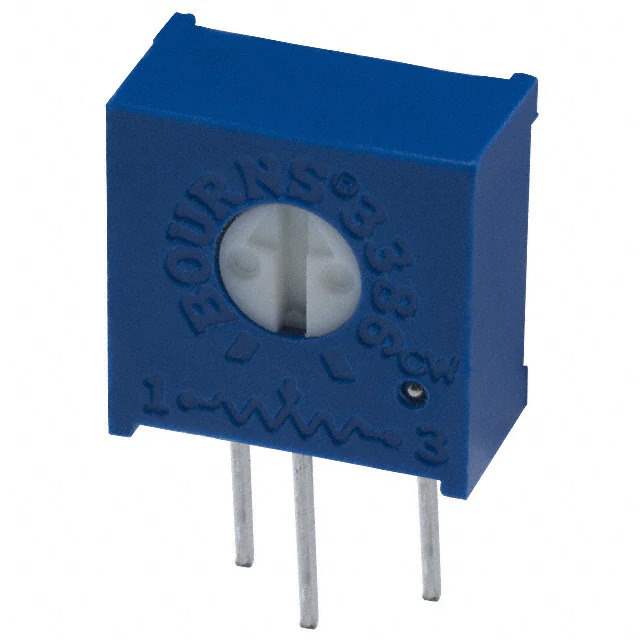

3386H-1-504 Real Image
Same model may have multiple batches, images only for reference.

3386H-1-504

Part No 3386H-1-504
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500KOHM 0.5W PC PIN SIDE / 500 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet
3386H-1-504 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3386 - Sealed
Package Tube
Product Status Active
Resistance 500 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
Base Product Number 3386H
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 906613-3386H-1-504
Ultra Librarian 3D Model Ultra Librarian 3386H-1-504 CAD Model

Description

The Trimpot 3386 - Sealed is a potentiometer with a resistance of 500 kOhms.

  • Mounting: through-hole
  • Size: 0.375" x 0.375"
  • Series: Bourns Inc.
  • Power Rating: 0.5W
  • Adjustment: side adjustment type
  • Termination Style: PC pins
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 1
  • Applications: potentiometers, variable resistors, and trimmer potentiometers
  • Package: tube
  • Standard Package: 100 pieces per standard package
  • REACH: affected
  • California Prop 65: complies
