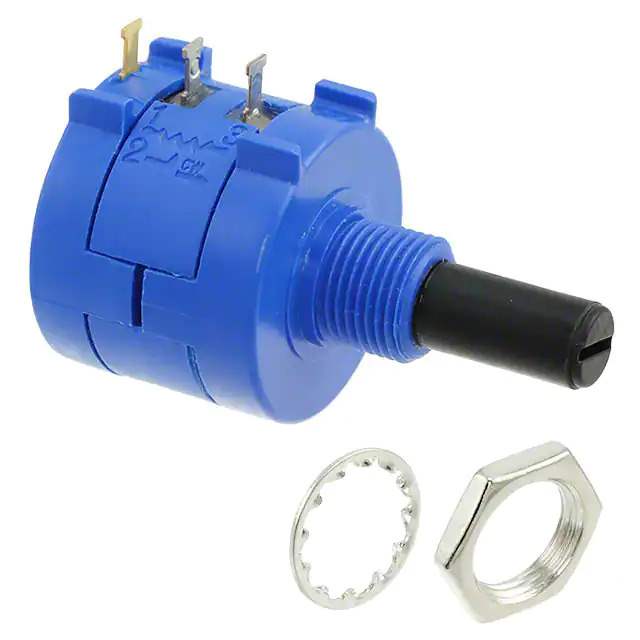

Same model may have multiple batches, images only for reference.

3590S-1-501L

Name: 3590S-1-501L
Brand: Bourns Inc.
SKU: 906669
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3590S-1-501L
Manufacturer	Bourns Inc.
Catalog	Rotary Potentiometers, Rheostats
Description	POT 500 OHM 2W WIREWOUND LINEAR
Datasheet	3590S-1-501L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr	Bourns Inc.
Series	3590
Package	Bulk
Product Status	Active
Resistance (Ohms)	500
Tolerance	±5%
Power (Watts)	2W
Built in Switch	None
Number of Turns	10
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	±50ppm/°C
Rotation	3600°
Resistive Material	Wirewound
Termination Style	Solder Lug
Actuator Type	Slotted
Actuator Length	0.812" (20.63mm)
Actuator Diameter	0.248" (6.30mm)
Bushing Thread	3/8-32
Mounting Type	Panel Mount
Size - Body	Round - 0.875" Dia (22.23mm)
Base Product Number	3590S
Standard Package	5 pcs
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.31.0000
California Prop 65	Warning Information
Win Source Part Number	906669-3590S-1-501L
Ultra Librarian 3D Model	Ultra Librarian 3590S-1-501L CAD Model

Alternative Products

Description

The 906669-3590S-1-501L is a rotary potentiometer from Bourns Inc.

Series: 3590
Termination Style: Solder Lug
Power: 2W
Tolerance: ±5%
Temperature Coefficient: ±50ppm/°C
Resistance Value: 500 Ohms
Taper: Linear
Turns: 10
Actuator Type: Slotted
Actuator Length: 0.812" (20.63mm)
Bushing Thread: 3/8-32
Gang: Single
Resistive Material: Wirewound
Built-in Switch: No
Rotation: 3600°
Actuator Diameter: 0.248" (6.30mm)
Body Shape: Round
Body Diameter: 0.875" (22.23mm)
REACH: Affected
California Prop 65: Compliant
Standard Package: 5 pcs
Product Status: Active
