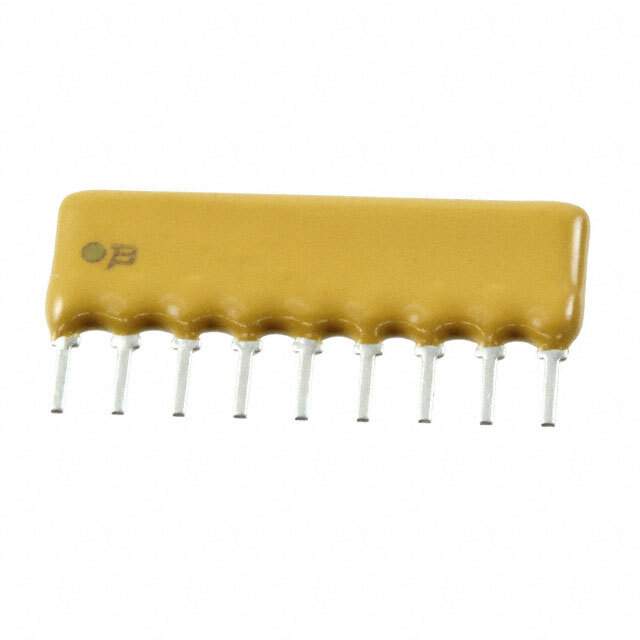

4609H-101-103LF Real Image
Same model may have multiple batches, images only for reference.

4609H-101-103LF

Part No 4609H-101-103LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 10K OHM 9SIP  /  10k Ohm ±2% 300mW Power Per Element Bussed 8 Resistor Network/Array ±100ppm/°C 9-SIP
Datasheet
4609H-101-103LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4600H
Package Bulk
Circuit Type Bussed
Resistance (Ohms) 10k
Tolerance ±2%
Number of Resistors 8
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 9
Power Per Element 300mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 9-SIP
Supplier Device Package 9-SIP
Dimension 0.898" L x 0.098" W (22.81mm x 2.49mm)
Height - Seated (Max) 0.200" (5.08mm)
Base Product Number 4609H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0050
Standard Package 500
Win Source Part Number 967626-4609H-101-103LF
Ultra Librarian 3D Model Ultra Librarian 4609H-101-103LF CAD Model

Description

The Bourns Inc. 4600H series is a resistor network with a bussed circuit type and a 2% tolerance.

  • Temperature Coefficient: ±100ppm/°C
  • Resistance: 10k ohms
  • Resistors: 8
  • Pins: 9
  • Power per Element: 300mW
  • Package/Case: 9-SIP
  • Temperature Range: -55°C to 125°C
  • MSL Level: 1 (unlimited)
  • REACH: unaffected
  • HTSUS Code: 8533.21.0050
