Same model may have multiple batches, images only for reference.

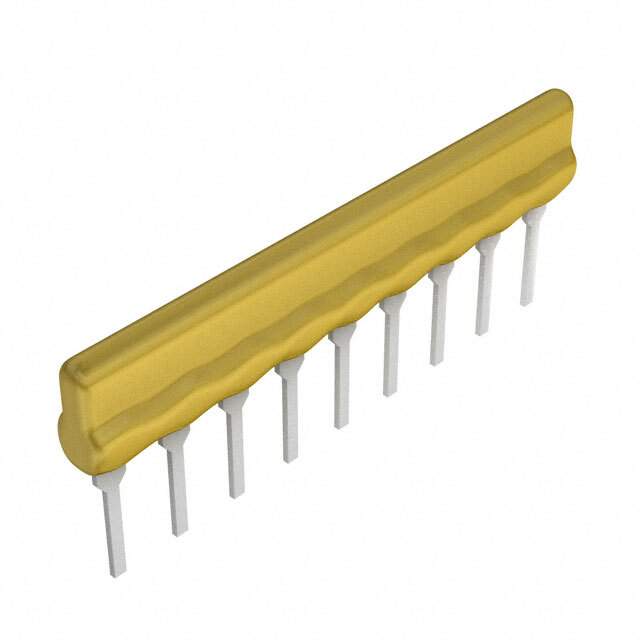

4609X-101-105LF Real Image
Same model may have multiple batches, images only for reference.

4609X-101-105LF

Part No 4609X-101-105LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 1M OHM 9SIP / 1M Ohm ±2% 200mW Power Per Element Bussed 8 Resistor Network/Array ±100ppm/°C 9-SIP
Datasheet
4609X-101-105LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4600X
Package Bulk
Circuit Type Bussed
Resistance (Ohms) 1M
Tolerance ±2%
Number of Resistors 8
Number of Pins 9
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 9-SIP
Supplier Device Package 9-SIP
Dimension 0.898" L x 0.098" W (22.81mm x 2.49mm)
Height - Seated (Max) 0.200" (5.08mm)
Base Product Number 4609X
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0050
Other Names 4609X101105LF
Standard Package 200
Win Source Part Number 1171574-4609X-101-105LF
Ultra Librarian 3D Model Ultra Librarian 4609X-101-105LF CAD Model

Description

The 4609X-101-105LF is a resistor network from Bourns Inc. that is designed to be used in various electronic applications.

  • Resistance: 1M
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Number of Resistors: Eight
  • Number of Pins: Nine
  • Power per Element: 200mW
  • Seated Height: 0.200 inches (5.08mm)
  • Packaging: Bulk
  • Standard Package: 200
  • Dimensions: 0.898 inches L x 0.098 inches W (22.81mm x 2.49mm)
