Same model may have multiple batches, images only for reference.

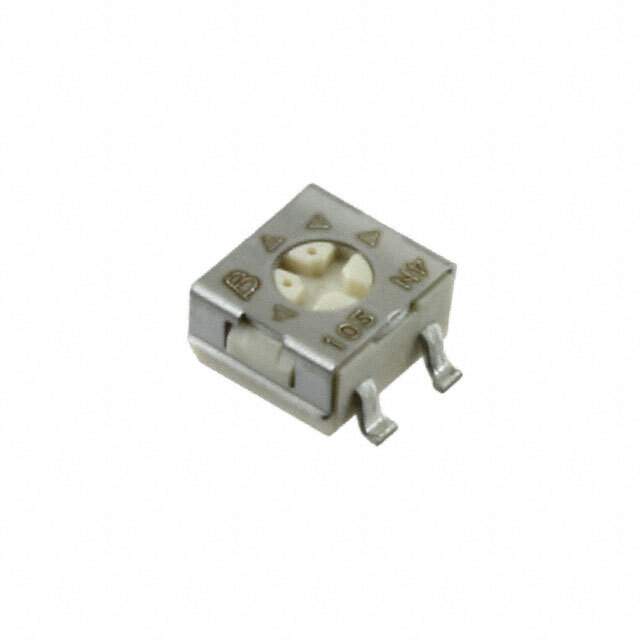

3314G-2-104E Real Image
Same model may have multiple batches, images only for reference.

3314G-2-104E

Part No 3314G-2-104E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100K OHM 0.25W GW TOP / 100 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet
3314G-2-104E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 100 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Surface Mount
Termination Style Gull Wing
Size / Dimension Square - 0.177" x 0.177" Face (4.50mm x 4.50mm)
Base Product Number 3314G
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number 3314G-2-104ETR,3314G-2-104E-ND,3314G-2-104ECT,3314G-2-104EDKR
Standard Package 500
Win Source Part Number 1325972-3314G-2-104E
Ultra Librarian 3D Model Ultra Librarian 3314G-2-104E CAD Model

Description

The 3314G series by Bourns Inc. is a trimmer potentiometer that is designed for top adjustment.

  • Resistance: 100 kOhms
  • Tolerance: ±20%
  • Power (watts): 0.25W, 1/4W
  • Number of Turns: 1
  • Resistive Material: Cermet
  • Termination Style: Gull-Wing
  • Size/Dimension: Square - 0.177" x 0.177" Face (4.50mm x 4.50mm)
  • Package: Reel - TR
  • Temperature Coefficient: ±100ppm/°C
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
