Same model may have multiple batches, images only for reference.

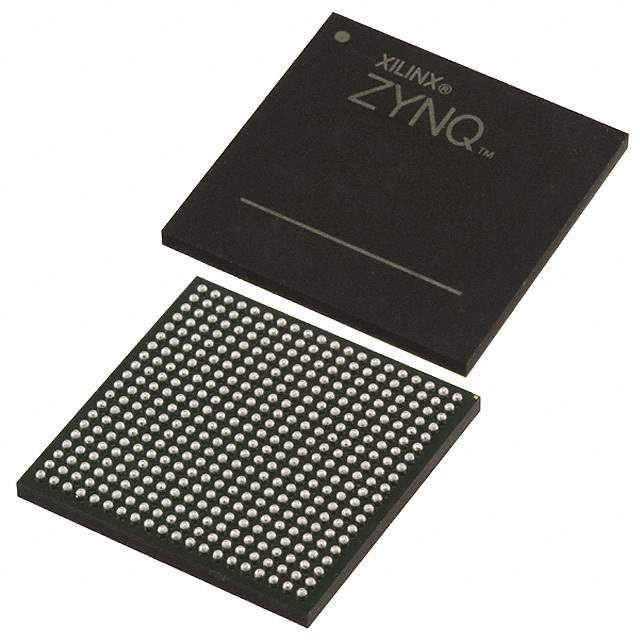

XC7Z007S-2CLG400E Real Image
Same model may have multiple batches, images only for reference.

XC7Z007S-2CLG400E

Part No XC7Z007S-2CLG400E
Manufacturer Xilinx Inc.
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 766MHZ 400BGA / Single ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Zynq®-7000 Artix™-7 FPGA, 23K Logic Cells 766MHz 400-CSPBGA (17x17)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>System On Chip (SoC)
Manufacturer AMD Xilinx
Packaging Tray
Architecture MCU, FPGA
Core Processor Single ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 766MHz
Primary Attributes Artix™-7 FPGA, 23K Logic Cells
Temperature Range - Operating 0°C ~ 100°C (TJ)
Case / Package 400-LFBGA, CSPBGA
Supplier Device Package 400-CSPBGA (17x17)
Number of I/O 100
Base Product Number XC7Z007
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Part Number 122-2013
Standard Package 90
Win Source Part Number 1323211-XC7Z007S-2CLG400E
Ultra Librarian 3D Model Ultra Librarian XC7Z007S-2CLG400E CAD Model

Description

The AMD Xilinx XC7Z007S-2CLG400E is a system on chip (SoC) integrated circuit designed for embedded applications.

  • Processor: Single ARM Cortex-A9 MPCore
  • Processor Speed: 766MHz
  • Package: 400-CSPBGA (17x17)
  • RAM: 256KB
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
  • Data Transfer: DMA
  • FPGA: Artix-7 FPGA with 23K logic cells
  • Operating Temperature: 0°C to 100°C (TJ)
  • ROHS3 Compliance: Compliant
  • REACH: Unaffected
