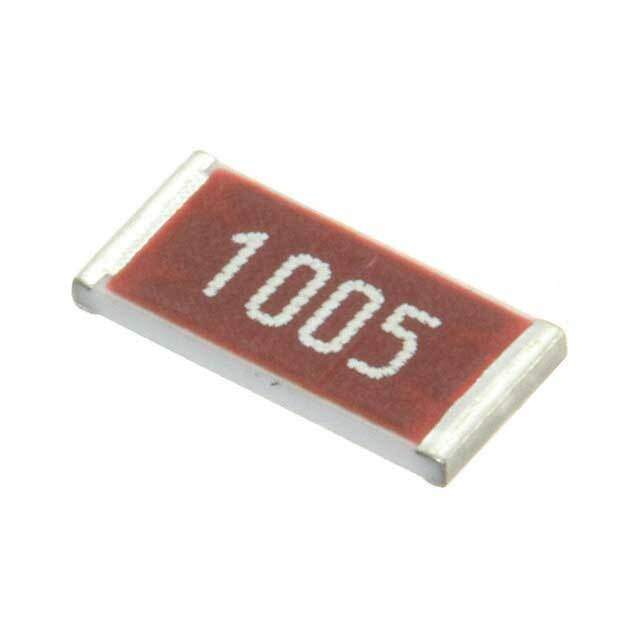

CHV2512-FX-2204ELF Real Image
Same model may have multiple batches, images only for reference.

CHV2512-FX-2204ELF

Part No CHV2512-FX-2204ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.2M OHM 1% 1W 2512 / 2.2 MOhms ±1% 1W Chip Resistor 2512 (6432 Metric) High Voltage Thick Film
Datasheet
CHV2512-FX-2204ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 2.2 MOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features High Voltage
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.030" (0.75mm)
Number of Terminations 2
Base Product Number CHV2512
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CHV2512-FX-2204ELFCT,CHV2512-FX-2204ELFTR,CHV2512-FX-2204ELFDKR
Standard Package 4,000
Win Source Part Number 1326133-CHV2512-FX-2204ELF
Ultra Librarian 3D Model Ultra Librarian CHV2512-FX-2204ELF CAD Model

Description

The CHV2512-FX-2204ELF is a chip resistor from Bourns Inc.

  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Thick film
  • Power: 1W
  • Terminations: 2
  • Resistance: 2.2 MOhms
  • Voltage Rating: 100V AC and 50V DC
  • Size/Dimension: 0.252" L x 0.126" W (6.40mm x 3.20mm)
  • Height: 0.030" (0.75mm)
  • Packaging: Reel - TR
  • Standard Package: 4,000
  • Temperature Range: -55°C ~ 155°C
  • ROHS3 Compliant: Yes
