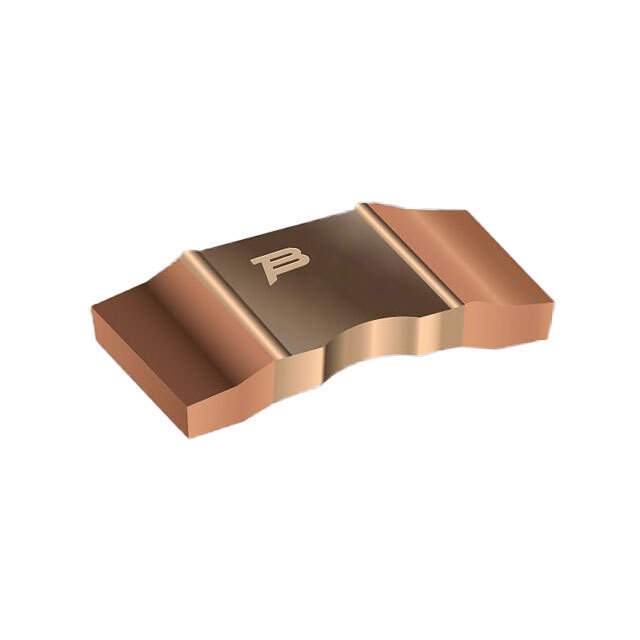

CSS2H-3920R-1L00F Real Image
Same model may have multiple batches, images only for reference.

CSS2H-3920R-1L00F

Part No CSS2H-3920R-1L00F
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES 0.001 OHM 1% 8W 3920 / 1 mOhms ±1% 8W Chip Resistor 3920 (1052 Metric) Current Sense, Moisture Resistant Metal Element
Datasheet
CSS2H-3920R-1L00F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 8W
Composition Metal Element
Features Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Case / Package 3920 (1052 Metric)
Supplier Device Package 3920
Size / Dimension 0.394" L x 0.205" W (10.00mm x 5.20mm)
Height - Seated (Max) 0.040" (1.02mm)
Number of Terminations 2
Base Product Number CSS2H
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CSS2H-3920R-1L00FCT,CSS2H-3920R-1L00FTR,CSS2H-3920R-1L00FDKR
Standard Package 3,000
Win Source Part Number 1329011-CSS2H-3920R-1L00F
Ultra Librarian 3D Model Ultra Librarian CSS2H-3920R-1L00F CAD Model

Description

The Bourns Inc. 1329011-CSS2H-3920R-1L00F is a high-quality metal element chip resistor with a resistance of 1 mOhms and a power rating of 8W.

  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Moisture Resistance: Moisture-Resistant
  • Operating Temperature: -55°C to 170°C
  • Package: 3920 (1052 Metric)
  • Number of Terminations: 2
  • Packaging: Reel
  • Standard Package: 3000
  • Series: CSS2H
  • Application: Current Sensing
