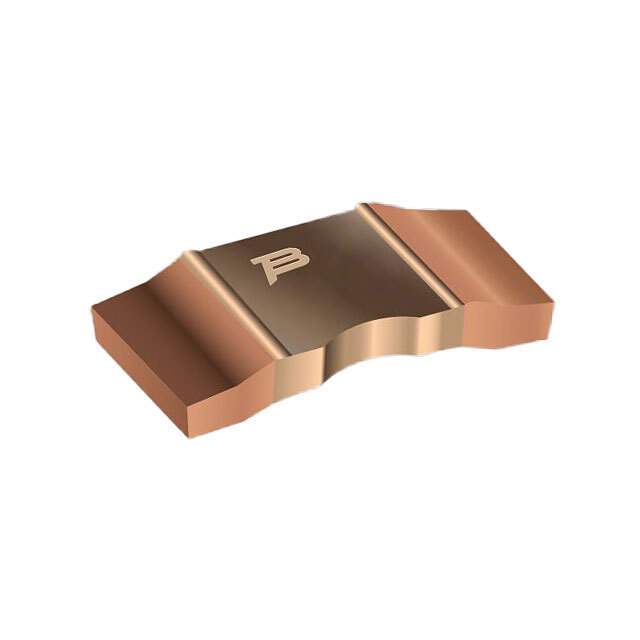

CSS2H-3920R-L200F Real Image
Same model may have multiple batches, images only for reference.

CSS2H-3920R-L200F

Part No CSS2H-3920R-L200F
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 200 UOHM 1% 12W 3920 / 0.2 mOhms ±1% 12W Chip Resistor 3920 (1052 Metric) Current Sense, Moisture Resistant Metal Element
Datasheet
CSS2H-3920R-L200F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 0.2 mOhms
Tolerance ±1%
Power (Watts) 12W
Composition Metal Element
Features Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Case / Package 3920 (1052 Metric)
Supplier Device Package 3920
Size / Dimension 0.394" L x 0.205" W (10.00mm x 5.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Number of Terminations 2
Base Product Number CSS2H
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CSS2H-3920R-L200FCT,CSS2H-3920R-L200FDKR,CSS2H-3920R-L200FTR
Standard Package 3,000
Win Source Part Number 1329069-CSS2H-3920R-L200F
Ultra Librarian 3D Model Ultra Librarian CSS2H-3920R-L200F CAD Model

Description

The Bourns Inc. CSS2H-3920R-L200F is a chip resistor designed for surface mount applications.

  • Resistance: 0.2 mOhms
  • Tolerance: ±1%
  • Power Rating: 12W
  • Length: 0.394 inches (10.00 mm)
  • Width: 0.205 inches (5.20 mm)
  • Height: 0.051 inches (1.30 mm)
  • Composition: Metal element
  • Terminations: 2
  • Temperature Range: -55°C to 170°C
  • Packaging: Reel
  • ROHS3 Compliant: Yes
