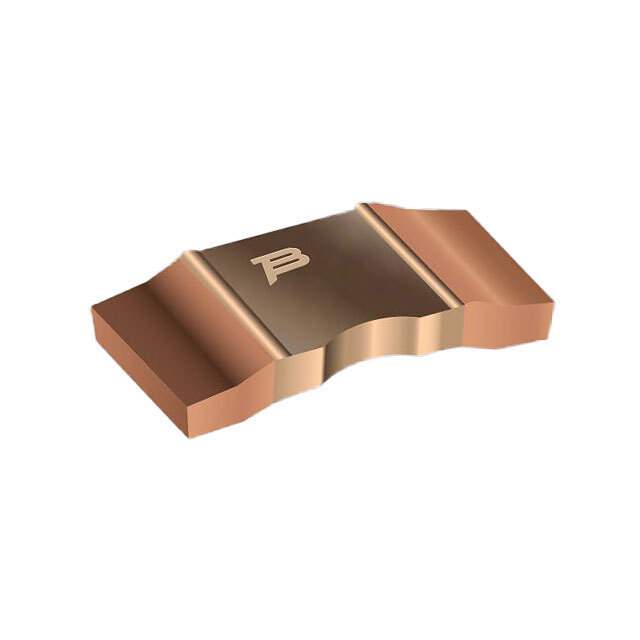

CSS2H-3920R-L500F Real Image
Same model may have multiple batches, images only for reference.

CSS2H-3920R-L500F

Part No CSS2H-3920R-L500F
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 500 UOHM 1% 9W 3920 / 0.5 mOhms ±1% 9W Chip Resistor 3920 (1052 Metric) Current Sense, Moisture Resistant Metal Element
Datasheet
CSS2H-3920R-L500F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 0.5 mOhms
Tolerance ±1%
Power (Watts) 9W
Composition Metal Element
Features Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Case / Package 3920 (1052 Metric)
Supplier Device Package 3920
Size / Dimension 0.394" L x 0.205" W (10.00mm x 5.20mm)
Height - Seated (Max) 0.037" (0.94mm)
Number of Terminations 2
Base Product Number CSS2H
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CSS2H-3920R-L500FDKR,CSS2H-3920R-L500FTR,CSS2H-3920R-L500FCT
Standard Package 3,000
Win Source Part Number 1329065-CSS2H-3920R-L500F
Ultra Librarian 3D Model Ultra Librarian CSS2H-3920R-L500F CAD Model

Description

The Bourns Inc. CSS2H-3920R-L500F is a chip resistor that is ideal for current sensing applications.

  • Resistance: 0.5 mOhms
  • Power Rating: 9W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Composition: Metal Element
  • Terminations: 2
  • Moisture Resistant: Yes
  • Temperature Range: -55°C to 170°C
  • Package: 3920 (1052 Metric)
  • Reel: 3000
  • ECCN: EAR99
  • RoHS3 Compliant: Yes
