Same model may have multiple batches, images only for reference.

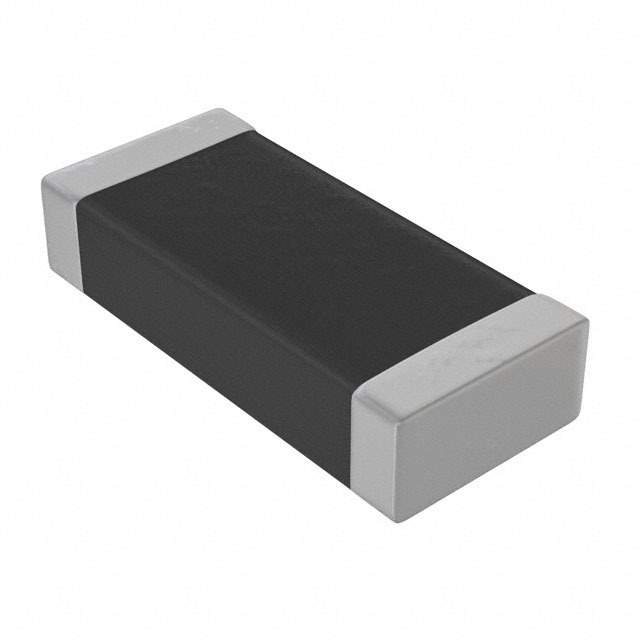

CVH252009-1R5M Real Image
Same model may have multiple batches, images only for reference.

CVH252009-1R5M

Part No CVH252009-1R5M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1.5UH 1.5A 70 MOHM SMD / 1.5 µH Shielded Multilayer Inductor 1.5 A 70mOhm Max 1008 (2520 Metric)
Datasheet
CVH252009-1R5M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Multilayer
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 1.5 A
Shielding Shielded
DC Resistance (DCR) 70mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number CVH252009
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number CVH252009-1R5MDKR,CVH252009-1R5MCT,CVH252009-1R5MTR,CVH2520091R5M
Standard Package 3,000
Win Source Part Number 1330438-CVH252009-1R5M
Ultra Librarian 3D Model Ultra Librarian CVH252009-1R5M CAD Model

Description

The CVH252009 series of fixed inductors from Bourns Inc. is designed for use in a variety of applications.

  • Type: Multilayer Inductors
  • Shielded: Yes
  • Package: Reel
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 70mOhm max
  • Current Rating: 1.5A
  • Frequency Self-Resonant: 50MHz
  • Package: 1008 (2520 Metric)
  • Temperature Range: -55°C to 125°C
  • REACH: Unaffected
