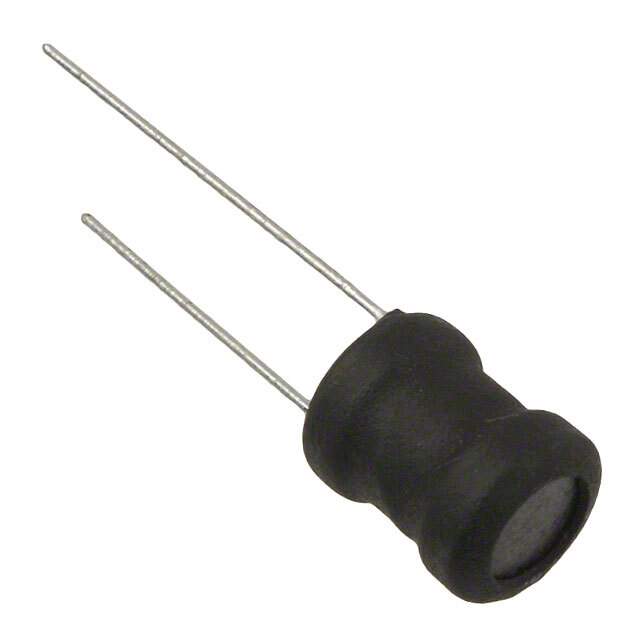

The RLB0914-121KL is a shielded power inductor manufactured by Bourns. It is designed for use in DC-DC converters, power supplies, and other power applications where a compact size and high current handling are required. The shielded construction helps minimize electromagnetic interference (EMI).

Applications:

• DC-DC converters
• Power supplies
• Voltage regulators
• Buck, boost, and buck-boost converters
• Filtering circuits

Features:

• Inductance: 120 μH
• Tolerance: ±10%
• Saturation Current: Check datasheet for specific value
• Shielded Construction
• Surface Mount Design
• RoHS Compliant

Benefits:

• Low EMI: The shielded construction minimizes electromagnetic interference, reducing noise in sensitive circuits.
• High Current Handling: Designed for high current applications, enabling efficient power conversion.
• Compact Size: The small footprint allows for use in space-constrained designs.
• Robust Construction: Provides reliable performance in demanding environments.
• RoHS Compliance: Meets environmental regulations for lead-free manufacturing.

The RLB0914-121KL inductor is constructed with a ferrite core and a copper winding. The shielded construction encloses the inductor core and windings, minimizing radiated emissions. The surface mount terminals are designed for easy soldering to the PCB. Refer to the manufacturer's datasheet for specific performance characteristics, including saturation current at different temperatures and frequencies, and recommended soldering profiles.
