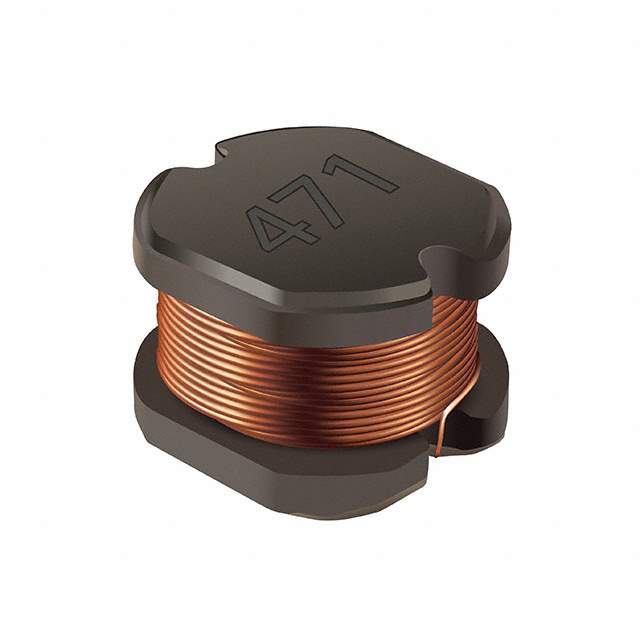

SDE0805A-5R6M Real Image
Same model may have multiple batches, images only for reference.

SDE0805A-5R6M

Part No SDE0805A-5R6M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE0805A-5R6M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE0805A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5.6 µH
Tolerance ±20%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 3.7A
Shielding Unshielded
DC Resistance (DCR) 43mOhm Max
Frequency - Self Resonant 34.9MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Base Product Number SDE0805A
Other Names SDE0805A-5R6MCT,SDE0805A-5R6MTR,SDE0805A-5R6MDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274893-SDE0805A-5R6M
Ultra Librarian 3D Model Ultra Librarian SDE0805A-5R6M CAD Model

Description

The Bourns Inc. SDE0805A-5R6M is a drum core, wirewound inductor that is unshielded and has a ferrite core material.

  • Inductance: 5.6 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 43mOhm Max
  • Q @ Freq: No information available
  • Frequency - Self-Resonant: 34.9MHz
  • Current Rating (amps): 4A
  • Current - Saturation (Isat): 3.7A
  • Package/Case: Nonstandard
  • Packaging: Tape & Reel
  • Temperature Range: -40°C to 125°C
  • REACH: Unaffected
  • AEC-Q200 Rating: Yes
