Same model may have multiple batches, images only for reference.

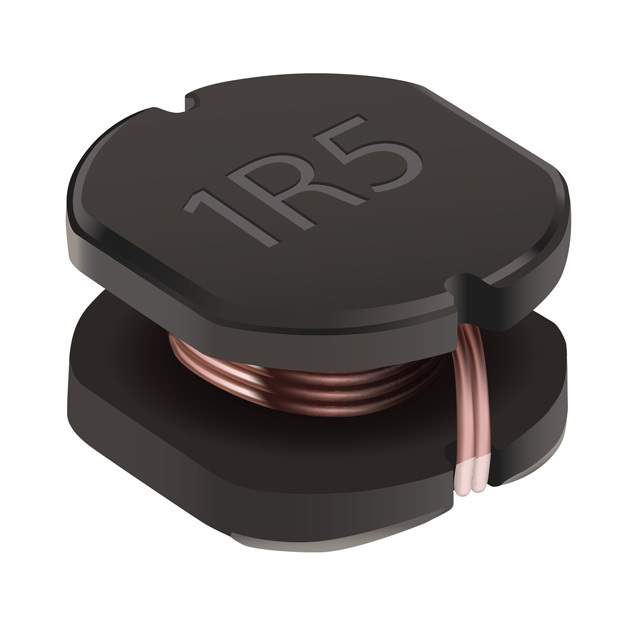

SDE1006A-151K Real Image
Same model may have multiple batches, images only for reference.

SDE1006A-151K

Part No SDE1006A-151K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE1006A-151K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE1006A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±10%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.2A
Shielding Unshielded
DC Resistance (DCR) 470mOhm Max
Frequency - Self Resonant 6.6MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max) 0.228" (5.80mm)
Base Product Number SDE1006A
Other Names SDE1006A-151KDKR,SDE1006A-151KTR,SDE1006A-151K,SDE1006A-151KCT
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274884-SDE1006A-151K
Ultra Librarian 3D Model Ultra Librarian SDE1006A-151K CAD Model

Description

Bourns Inc. presents the SDE1006A series of drum core, wirewound fixed inductors.

  • Shielding: Unshielded
  • Inductance: 150 µH
  • Tolerance: ±10%
  • Package/Case: Nonstandard
  • DC Resistance: 470mOhm max
  • Material: Ferrite
  • Self-Resonant Frequency: 6.6MHz
  • Height: 0.228" (5.80mm)
  • Current Rating: 1.1A
  • Operating Temperature: -40°C ~ 125°C
  • Packaging: Tape & Reel
  • Standard Package: 800
