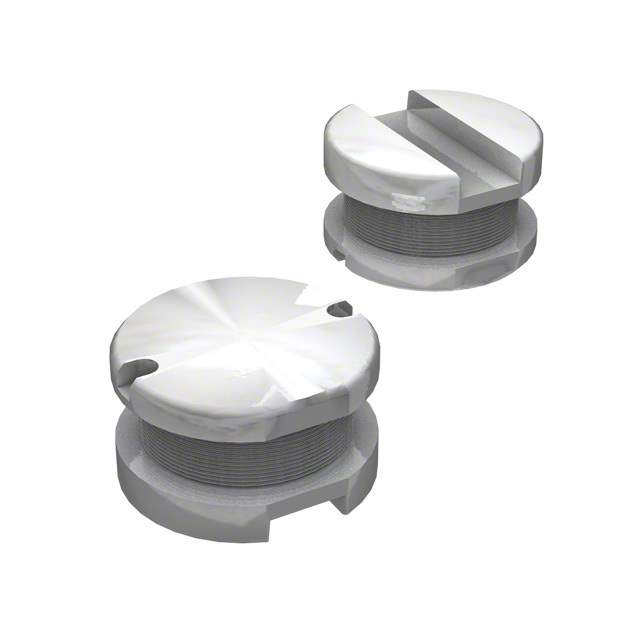

SDR0503-472J Real Image
Same model may have multiple batches, images only for reference.

SDR0503-472J

Part No SDR0503-472J
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0503-472J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0503
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 mH
Tolerance ±5%
Current Rating (Amps) 40 mA
Current - Saturation (Isat) 50mA
Shielding Unshielded
DC Resistance (DCR) 48Ohm Max
Q @ Freq 40 @ 252kHz
Frequency - Self Resonant 1MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.189" W (5.00mm x 4.80mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SDR0503
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274796-SDR0503-472J
Ultra Librarian 3D Model Ultra Librarian SDR0503-472J CAD Model

Description

The SDR0503-472J is a drum core, wirewound inductor component manufactured by Bourns Inc.

  • Series: SDR0503
  • Shielding: Unshielded
  • Package: Nonstandard
  • Inductance: 4.7 mH
  • Tolerance: ±5%
  • Q @ Freq: 40 @ 252kHz
  • Dimension: 0.197" L x 0.189" W (5.00mm x 4.80mm)
  • Operating Temperature: -40°C ~ 125°C
  • Status: Obsolete
