Same model may have multiple batches, images only for reference.

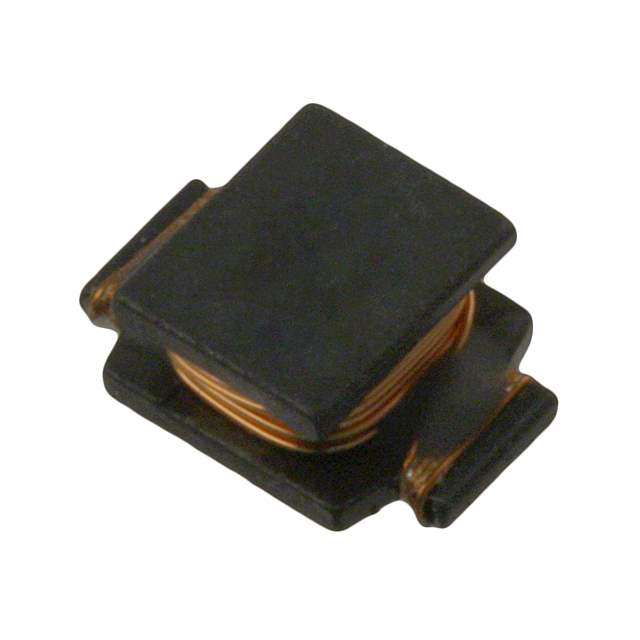

SDR0703-270KL Real Image
Same model may have multiple batches, images only for reference.

SDR0703-270KL

Part No SDR0703-270KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0703-270KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0703
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 27 µH
Tolerance ±10%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 880mA
Shielding Unshielded
DC Resistance (DCR) 400mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max) 0.106" (2.70mm)
Base Product Number SDR0703
Other Names SDR0703270KL,-SDR0703-270KL,SDR0703-270KLTR,SDR0703-270KLCT,-SDR0703-270KL,SDR0703-270KL,-SDR0703-270KLTR,-SDR0703-270KLCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274739-SDR0703-270KL
Ultra Librarian 3D Model Ultra Librarian SDR0703-270KL CAD Model

Description

The SDR0703 series fixed inductor from Bourns Inc. has an inductance of 27 µH and a tolerance of ±10%.

  • Height: 0.106"
  • Package Type: Nonstandard
  • Mounting: SMD (SMT) technology
  • Temperature Range: -40°C to 125°C
