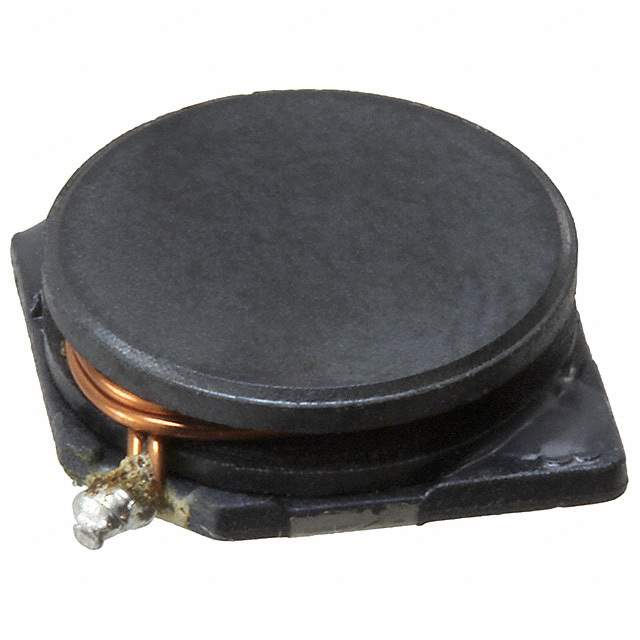

Same model may have multiple batches, images only for reference.

SDR1030-2R7M

Name: SDR1030-2R7M
Brand: Bourns Inc.
SKU: 1274631
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SDR1030-2R7M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SDR1030-2R7M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDR1030
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.7 µH
Tolerance	±20%
Current Rating (Amps)	3 A
Current - Saturation (Isat)	4.2A
Shielding	Unshielded
DC Resistance (DCR)	28mOhm Max
Q @ Freq	13 @ 7.96MHz
Frequency - Self Resonant	73.6MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.130" (3.30mm)
Base Product Number	SDR1030
Other Names	SDR1030-2R7MDKR,SDR1030-2R7MCT,SDR1030-2R7M,SDR1030-2R7MTR
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274631-SDR1030-2R7M
Ultra Librarian 3D Model	Ultra Librarian SDR1030-2R7M CAD Model

Alternative Products

Description

The Bourns Inc. fixed inductor is a SDR1030 series product.

Type: Drum core, wirewound
Shielding: Unshielded
Inductance: 2.7 µH
Tolerance: ±20%
Height when seated: 0.130" (3.30mm)
Package/Case: Nonstandard
Mounting: SMD (SMT)
Material Core: Ferrite
Operating Temperature Range: -40°C ~ 125°C
Win Source Part Number: 1274631-SDR1030-2R7M
