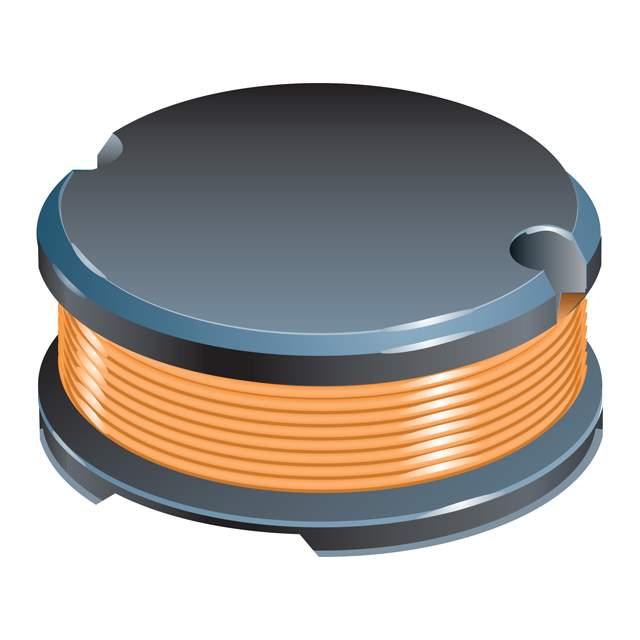

Same model may have multiple batches, images only for reference.

SDR1307A-331K

Name: SDR1307A-331K
Brand: Bourns Inc.
SKU: 1274567
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SDR1307A-331K
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SDR1307A-331K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDR1307A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	330 µH
Tolerance	±10%
Current Rating (Amps)	1.1 A
Current - Saturation (Isat)	1.6A
Shielding	Unshielded
DC Resistance (DCR)	520mOhm Max
Q @ Freq	15 @ 796kHz
Frequency - Self Resonant	3.2MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.512" Dia (13.00mm)
Height - Seated (Max)	0.287" (7.30mm)
Base Product Number	SDR1307A
Other Names	SDR1307A-331KCT,SDR1307A-331KDKR,SDR1307A-331K,SDR1307A-331KTR
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274567-SDR1307A-331K
Ultra Librarian 3D Model	Ultra Librarian SDR1307A-331K CAD Model

Alternative Products

Description

The Bourns SDR1307A-331K is a fixed inductor designed for use in various applications.

Shielding: Unshielded
Inductance: 330μH
Standard Package: 400
Mounting Type: SMD (SMT)
Package/Case Size: Nonstandard
Operating Temperature Range: -40°C to 125°C
Dimensions: 0.512" Dia (13.00mm)
Q @ Freq: 15 @ 796kHz
Frequency of Self-Resonant: 3.2MHz
ECCN: EAR99
REACH: Unaffected
