Same model may have multiple batches, images only for reference.

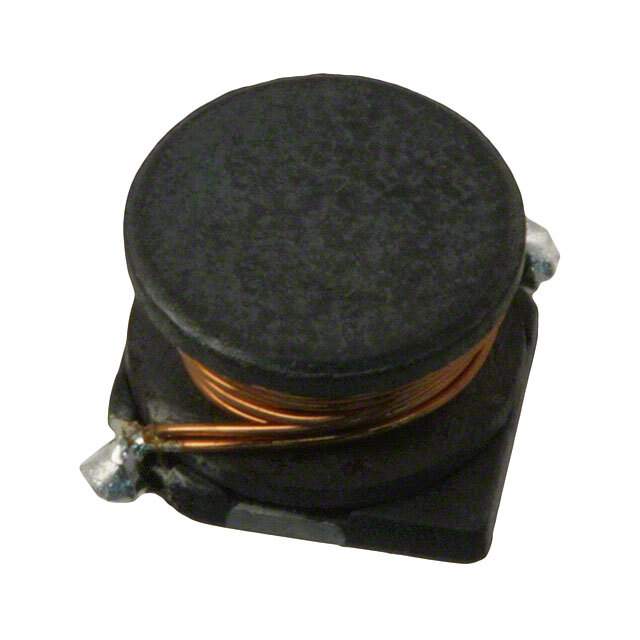

SDR7045-151K Real Image
Same model may have multiple batches, images only for reference.

SDR7045-151K

Part No SDR7045-151K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR7045-151K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR7045
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±10%
Current Rating (Amps) 620 mA
Current - Saturation (Isat) 580mA
Shielding Unshielded
DC Resistance (DCR) 580mOhm Max
Q @ Freq 17 @ 796kHz
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR7045
Other Names SDR7045-151K,118-SDR7045-151KTR,118-SDR7045-151KCT,118-SDR7045-151KDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274484-SDR7045-151K
Ultra Librarian 3D Model Ultra Librarian SDR7045-151K CAD Model

Description

The SDR7045 series from Bourns Inc. is a drum core, wirewound inductor with an inductance of 150 µH.

  • Manufacturer: Bourns Inc.
  • Series: SDR7045
  • Type: drum core, wirewound inductor
  • Inductance: 150 µH
  • Tolerance: ±10%
  • DC Resistance (DCR): 580mOhm Max
  • Temperature Range: -40°C to 125°C
  • Q @ Freq: 17 @ 796kHz
  • Shielding: shielded
  • Package/Case: nonstandard
  • Frequency of Self-Resonant: 8MHz
  • Current Rating: 620 mA
  • Mounting: SMD (SMT) technology
  • Package: tape & reel package of 1,000
