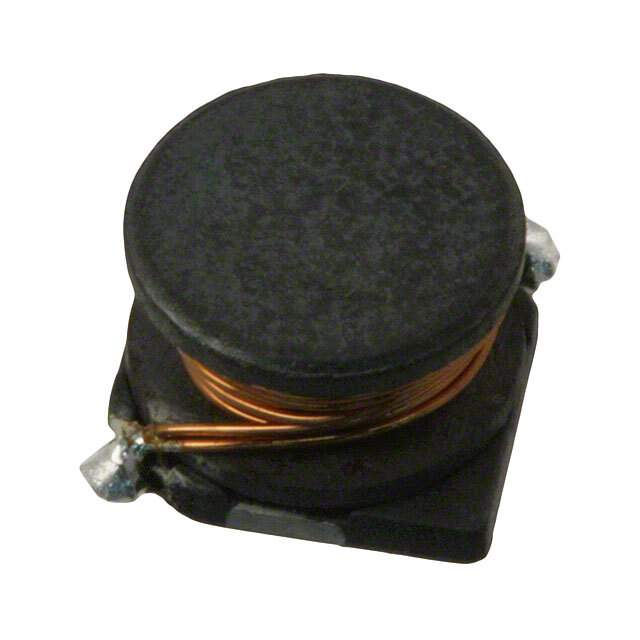

SDR7045-221K Real Image
Same model may have multiple batches, images only for reference.

SDR7045-221K

Part No SDR7045-221K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR7045-221K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR7045
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±10%
Current Rating (Amps) 500 mA
Current - Saturation (Isat) 480mA
Shielding Unshielded
DC Resistance (DCR) 930mOhm Max
Q @ Freq 22 @ 796kHz
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR7045
Other Names SDR7045-221KCT,SDR7045-221KDKR,SDR7045-221KTR,SDR7045-221K
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274482-SDR7045-221K
Ultra Librarian 3D Model Ultra Librarian SDR7045-221K CAD Model

Description

The Bourns Inc. SDR7045-221K is a drum core, wirewound inductor with an unshielded feature.

  • Manufacturer: Bourns Inc.
  • Type: drum core, wirewound inductor
  • Shielding: unshielded
  • Package: tape and reel
  • Series: SDR7045
  • Inductance: 220 µH
  • Tolerance: ±10%
  • Core Material: ferrite material
  • Q @ Freq: 22 @ 796kHz
  • Frequency Self-Resonant: 6MHz
  • Package/Case: nonstandard
  • DC Resistance (DCR): 930mOhm Max
  • Current Rating (Amps): 500 mA
  • Operating Temperature Range: -40°C to 125°C
  • Dimension: 0.276" L x 0.276" W (7.00mm x 7.00mm)
  • ECCN: EAR99
  • REACH: unaffected
