Same model may have multiple batches, images only for reference.

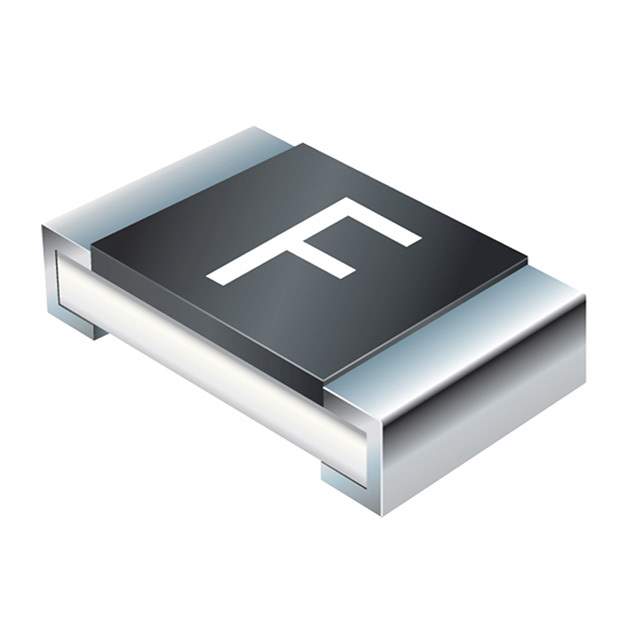

SF-0402FP050-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402FP050-2

Part No SF-0402FP050-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402FP050-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402FP
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.00317
Approval Agency UL
Temperature Range - Operating -20°C ~ 150°C
Dimension 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm)
Base Product Number SF-0402
Other Names SF-0402FP050-2TR,SF-0402FP050-2CT,SF-0402FP050-2DKR
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302195-SF-0402FP050-2
Ultra Librarian 3D Model Ultra Librarian SF-0402FP050-2 CAD Model

Description

The SinglFuse SF-0402FP050-2 from Bourns Inc. is a board mount fuse.

  • Package: Tape and Reel
  • Standard Package: 10,000
  • Voltage Rating: 32V DC
  • Response Time: Fast Blow
  • Breaking Capacity: 35A @ rated voltage
  • Melting I2t: 0.00317
  • Current Rating: 500mA
  • Mounting: SMD (SMT) technology
  • Package: 0402 (1005 Metric)
  • Temperature Range: -20°C to 150°C
  • REACH: Unaffected
  • Approval: UL approval
