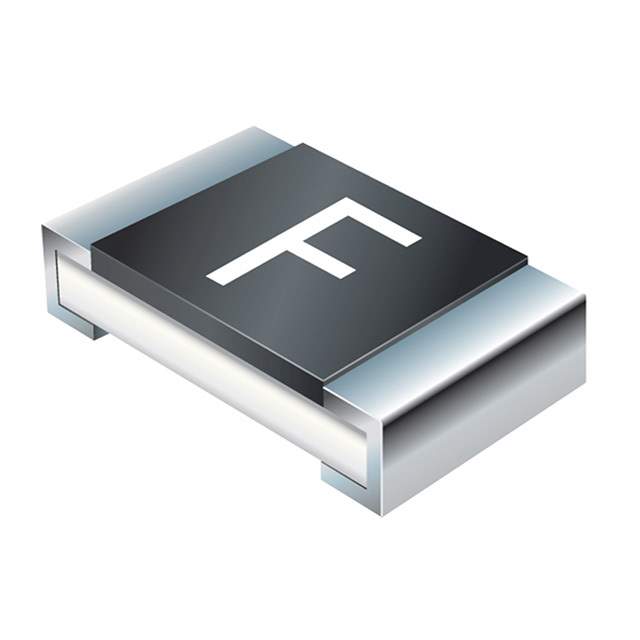

SF-0402FP250-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402FP250-2

Part No SF-0402FP250-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402FP250-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402FP
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.03763
Approval Agency UL
Temperature Range - Operating -20°C ~ 150°C
Dimension 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm)
Base Product Number SF-0402
Other Names SF-0402FP250-2TR,118-SF-0402FP250-2TR,SF-0402FP250-2CT,SF-0402FP250-2CT,118-SF-0402FP250-2CT,SF-0402FP250-2DKR,118-SF-0402FP250-2DKR,SF-0402FP250-2TR,SF-0402FP250-2DKR
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302197-SF-0402FP250-2
Ultra Librarian 3D Model Ultra Librarian SF-0402FP250-2 CAD Model

Description

The SinglFuse™ SF-0402FP is a fast blow board mount fuse designed for circuit protection.

  • Voltage Rating: 32 V
  • Breaking Capacity: 35A @ rated voltage
  • Response Time: Fast Blow
  • Melting I2t: 0.03763
  • Current Rating: 2.5 A
  • Package: Tape & reel
  • Standard Package: 10,000
  • Mounting Type: SMD (SMT)
  • Package/Case: 0402 (1005 Metric)
  • Operating Temperature Range: -20℃ to 150℃
  • Dimension: 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm)
  • Manufacturer: Bourns Inc.
  • ECCN: EAR99
