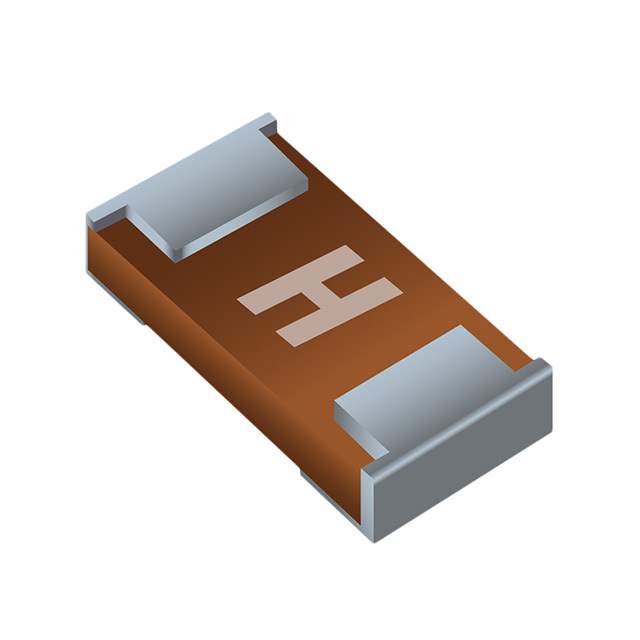

SF-0603FP250F-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603FP250F-2

Part No SF-0603FP250F-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603FP250F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603FPxxxF
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5 A
Voltage Rating - AC 24 V
Voltage Rating - DC 35 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A AC, 35A DC
Melting I2t 0.24
Approval Agency UL
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.30mm)
DC Cold Resistance 0.021 Ohms
Base Product Number SF-0603
Other Names SF-0603FP250F-2CT,SF-0603FP250F-2TR,SF-0603FP250F-2DKR
Standard Package 8,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302155-SF-0603FP250F-2
Ultra Librarian 3D Model Ultra Librarian SF-0603FP250F-2 CAD Model

Description

This circuit protection electronic component is a board mount (cartridge style excluded) fuse with the Win Source Part Number 1302155-SF-0603FP250F-2 manufactured by Bourns Inc.

  • Series: SinglFuse™ SF-0603FPxxxF
  • Response Time: Fast blow
  • Breaking Capacity @ Rated Voltage: 50A AC, 35A DC
