Same model may have multiple batches, images only for reference.

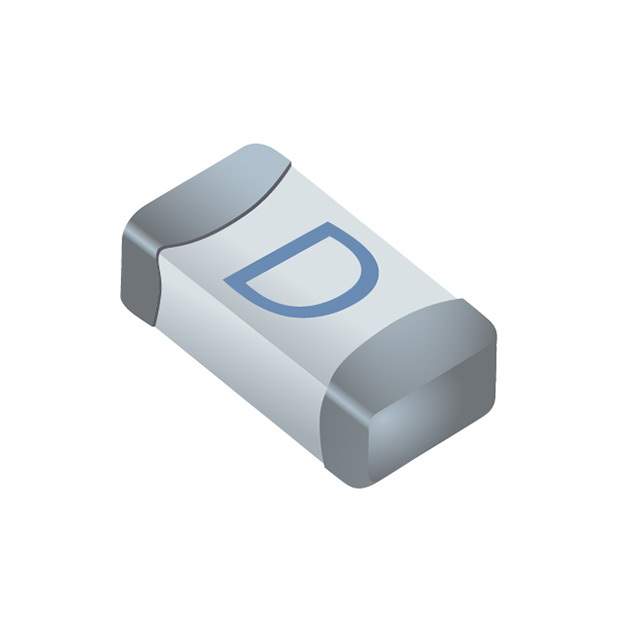

SF-0603FP400M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603FP400M-2

Part No SF-0603FP400M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603FP400M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603FPxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 1.15
Approval Agency UL
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.063" L x 0.031" W x 0.019" H (1.60mm x 0.80mm x 0.48mm)
DC Cold Resistance 0.023 Ohms
Base Product Number SF-0603
Other Names SF-0603FP400M-2TR,SF-0603FP400M-2CT,SF-0603FP400M-2DKR,118-SF-0603FP400M-2TR,118-SF-0603FP400M-2CT,SF-0603FP400M-2DKR,SF-0603FP400M-2CT,SF-0603FP400M-2TR,118-SF-0603FP400M-2DKR
Standard Package 6,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302144-SF-0603FP400M-2
Ultra Librarian 3D Model Ultra Librarian SF-0603FP400M-2 CAD Model

Description

The SinglFuse™ SF-0603FPxxxM series from Bourns Inc. is a board mount (cartridge style excluded) fast blow fuse with a voltage rating of 32 V and breaking capacity of 35A.

  • DC Cold Resistance: 0.023 Ohms
  • Melting I2t: 1.15
  • Package: Tape & reel
  • Package/Case: 0603 (1608 Metric)
  • Dimensions: 0.063" L x 0.031" W x 0.019" H (1.60mm x 0.80mm x 0.48mm)
  • Temperature Range: -55°C to 150°C
  • Suitable for: Circuit protection applications
