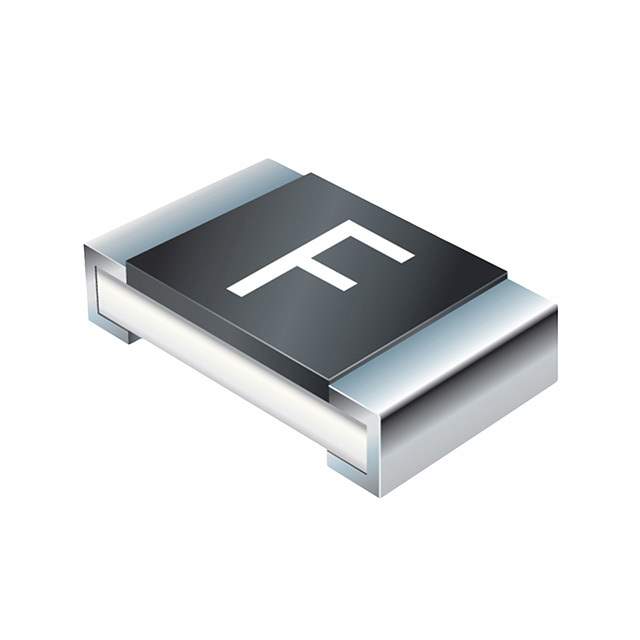

SF-0603FP500-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603FP500-2

Part No SF-0603FP500-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603FP500-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603FP
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.433
Approval Agency UL
Temperature Range - Operating -40°C ~ 105°C
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Base Product Number SF-0603
Other Names SF-0603FP500-2DKR,SF-0603FP500-2CT,SF-0603FP500-2,SF-0603FP500-2TR
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302161-SF-0603FP500-2
Ultra Librarian 3D Model Ultra Librarian SF-0603FP500-2 CAD Model

Description

The SinglFuse™ SF-0603FP500-2 is a circuit protection fuse from Bourns Inc.

  • Application: Board mount
  • Voltage Rating: 32V DC
  • Response Time: Fast blow
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 0.433
  • Package/Case: 0603 (1608 Metric)
  • Temperature Range: -40°C to 105°C
  • Current Rating: 5A
  • Supplied: Tape and reel package
