Same model may have multiple batches, images only for reference.

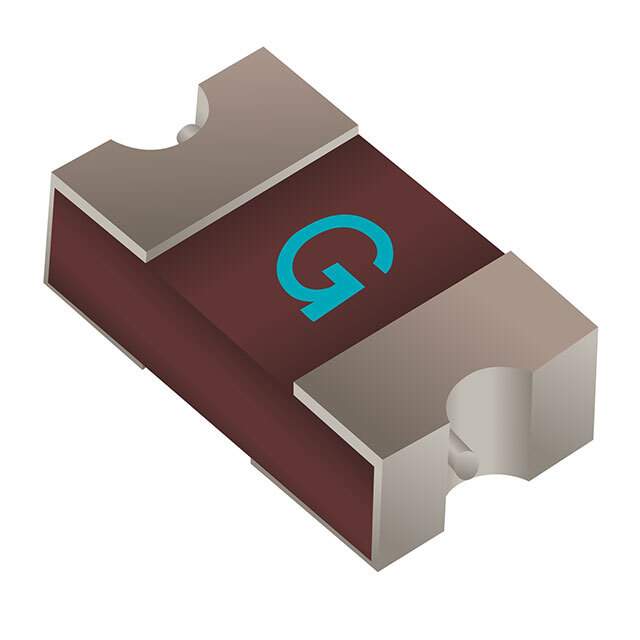

SF-1206SA630W-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206SA630W-2

Part No SF-1206SA630W-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206SA630W-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SA-W
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 6.3 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric), Concave
Breaking Capacity @ Rated Voltage 50A
Melting I2t 8.9
Approval Agency cUL, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.042" H (3.20mm x 1.60mm x 1.08mm)
DC Cold Resistance 0.01 Ohms
Other Names 118-SF-1206SA630W-2DKR,118-SF-1206SA630W-2CT,118-SF-1206SA630W-2TR
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302066-SF-1206SA630W-2
Ultra Librarian 3D Model Ultra Librarian SF-1206SA630W-2 CAD Model

Description

The Bourns Inc. SF-1206SA630W-2 is a slow blow circuit protection fuse.

  • Voltage Rating: 32 V
  • Breaking Capacity @ Rated Voltage: 50A
  • Package Type: Tape and Reel
  • Standard Package: 3,500
  • Mounting Type: SMD (SMT)
  • Package/Case: 1206 (3216 Metric), Concave
  • Temperature Range for Operating: -55°C ~ 125°C
  • Dimension: 0.126" L x 0.063" W x 0.042" H (3.20mm x 1.60mm x 1.08mm)
  • Current Rating (Amps): 6.3 A
  • Approvals: cUL, UL
