Same model may have multiple batches, images only for reference.

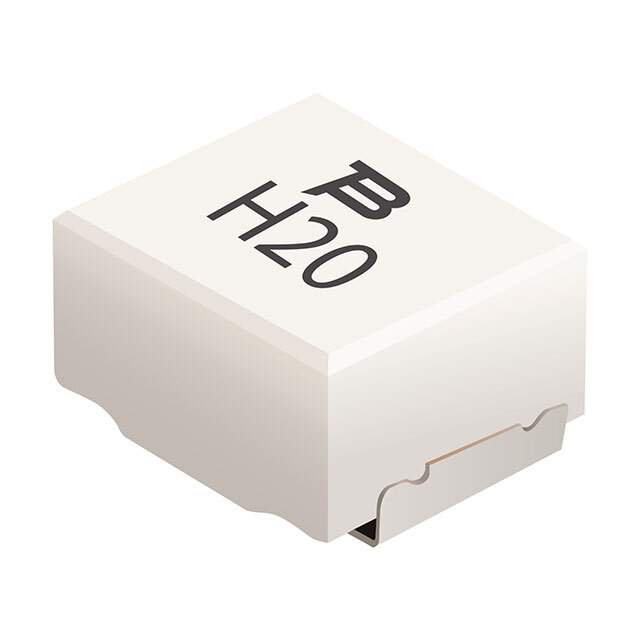

SF-2923HC50C-2 Real Image
Same model may have multiple batches, images only for reference.

SF-2923HC50C-2

Part No SF-2923HC50C-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-2923HC50C-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-2923HC-C
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 50 A
Voltage Rating - DC 60 V
Response Time Fast Blow
Package / Case 2-SMD, J-Lead
Breaking Capacity @ Rated Voltage 300A
Melting I2t 1750
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.287" L x 0.228" W x 0.157" H (7.30mm x 5.80mm x 4.00mm)
DC Cold Resistance 0.0007 Ohms
Base Product Number SF-2923
Other Names SF-2923HC50C-2TR,SF-2923HC50C-2DKR,SF-2923HC50C-2CT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1301963-SF-2923HC50C-2
Ultra Librarian 3D Model Ultra Librarian SF-2923HC50C-2 CAD Model

Description

The SF-2923HC50C-2 is a fast blow board mount fuse from Bourns Inc.

  • Series: SinglFuse™ SF-2923HC-C
  • Packaging: Tape and Reel
  • Voltage Rating: 60V DC
  • Breaking Capacity @ Rated Voltage: 300A
  • Current Rating: 50A
  • DC Cold Resistance: 0.0007 ohms
  • Response Time: Fast blow
  • Melting I2t: 1750
  • Mounting: Surface Mount Device
  • Package/Case: 2-SMD J-lead
  • Operating Temperature: -55°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Approval: UL
