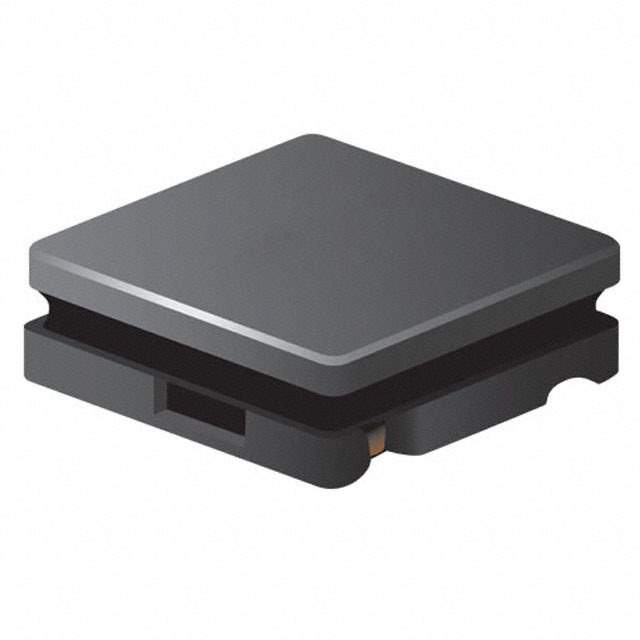

SRN3010-1R5Y Real Image
Same model may have multiple batches, images only for reference.

SRN3010-1R5Y

Part No SRN3010-1R5Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN3010
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±30%
Current Rating (Amps) 2 A
Current - Saturation (Isat) 1.65A
Shielding Semi-Shielded
DC Resistance (DCR) 91mOhm Max
Q @ Freq 7 @ 7.96MHz
Frequency - Self Resonant 110MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number SRN3010
Other Names SRN3010-1R5YCT,SRN30101R5Y,SRN3010-1R5YDKR,SRN3010-1R5YTR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274395-SRN3010-1R5Y
Ultra Librarian 3D Model Ultra Librarian SRN3010-1R5Y CAD Model

Description

The SRN3010-1R5Y is a drum core, wirewound inductor from Bourns Inc.

  • Shielding: Semi-shielded
  • Core Material: Ferrite
  • Inductance: 1.5 µH
  • Tolerance: ±30%
  • DC Resistance (DCR): 91mOhm Max
  • Current Rating: 2A
  • Q @ Freq: 7 @ 7.96MHz
  • Frequency of Self-Resonant: 110MHz
  • Package/Case: Non-standard
  • Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Operating Temperature Range: -40°C to 125°C
