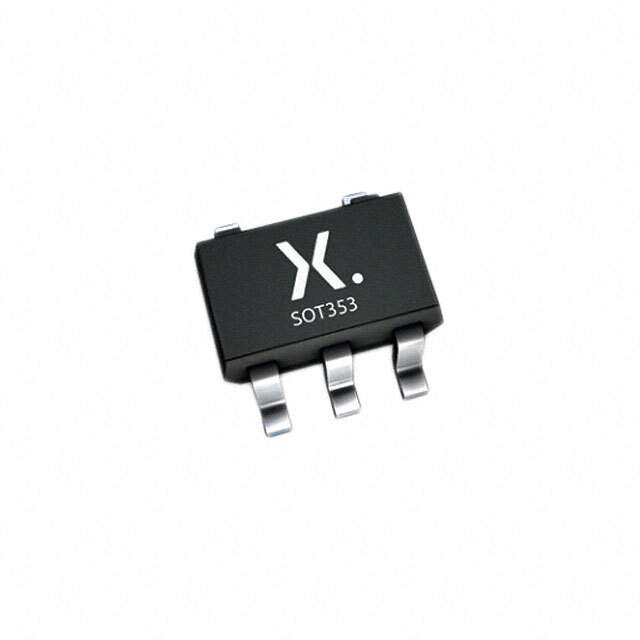

74LVC1G86GW-Q100H Real Image
Same model may have multiple batches, images only for reference.

74LVC1G86GW-Q100H

Part No 74LVC1G86GW-Q100H
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE XOR 1CH 2-INP 5TSSOP  /  XOR (Exclusive OR) IC 1 Channel 5-TSSOP
Datasheet
74LVC1G86GW-Q100H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74LVC
Package Tape & Reel (TR)
Logic Type XOR (Exclusive OR)
Number of Circuits 1
Number of Inputs 2
Voltage - Supply 1.65V ~ 5.5V
Current - Quiescent (Max) 4 µA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 4ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Supplier Device Package 5-TSSOP
Package / Case 5-TSSOP, SC-70-5, SOT-353
Base Product Number 74LVC1G86
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 935302545125
Standard Package 3,000
Win Source Part Number 1040578-74LVC1G86GW-Q100H
Ultra Librarian 3D Model Ultra Librarian 74LVC1G86GW-Q100H CAD Model

Description

The 74LVC1G86GW-Q100H is an XOR (Exclusive OR) gate with 1 circuit.

  • Supply Voltage: 1.65V to 5.5V
  • Maximum Propagation Delay: 4ns @ 5V, 50pF
  • Maximum Output Current: 32mA
  • Maximum Quiescent Current: 4μA
  • Package/Case: 5-TSSOP, SC-70-5, SOT-353
  • Supplier Device Package: 5-TSSOP
  • Operating Temperature: -40°C to 125°C
  • Series: 74LVC
