Same model may have multiple batches, images only for reference.

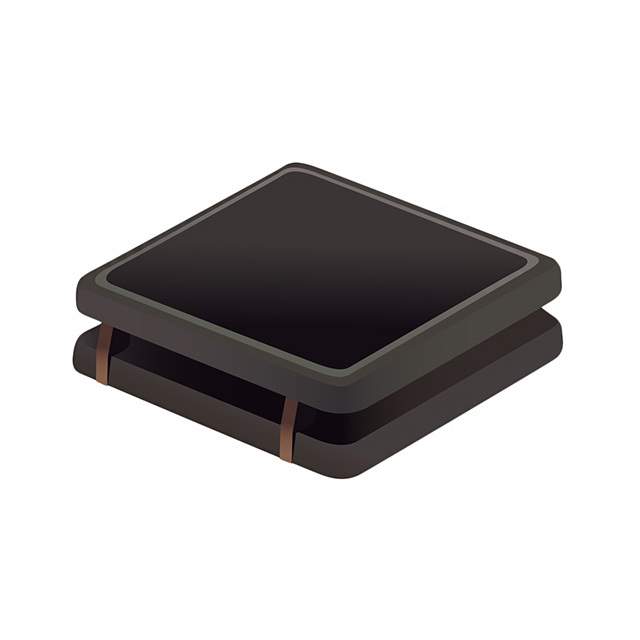

SRN3010TA-1R0Y Real Image
Same model may have multiple batches, images only for reference.

SRN3010TA-1R0Y

Part No SRN3010TA-1R0Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN3010TA-1R0Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN3010TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±30%
Current Rating (Amps) 2.1 A
Current - Saturation (Isat) 1.8A
Shielding Semi-Shielded
DC Resistance (DCR) 55mOhm
Q @ Freq 10 @ 1MHz
Frequency - Self Resonant 170MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number SRN3010TA
Other Names SRN3010TA-1R0YTR,SRN3010TA-1R0YCT,SRN3010TA-1R0YDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274391-SRN3010TA-1R0Y
Ultra Librarian 3D Model Ultra Librarian SRN3010TA-1R0Y CAD Model

Description

The SRN3010TA-1R0Y is a drum core, wirewound type inductor from Bourns Inc.

  • Inductance: 1 μH
  • Tolerance: ±30%
  • DC Resistance: 55mOhm
  • Current: Up to 2.1 A
  • Q @ Freq: 10 @ 1MHz
  • Frequency Self-Resonant: 170MHz
  • Mounting Type: SMD (SMT)
  • Package/Case: Non-standard
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
