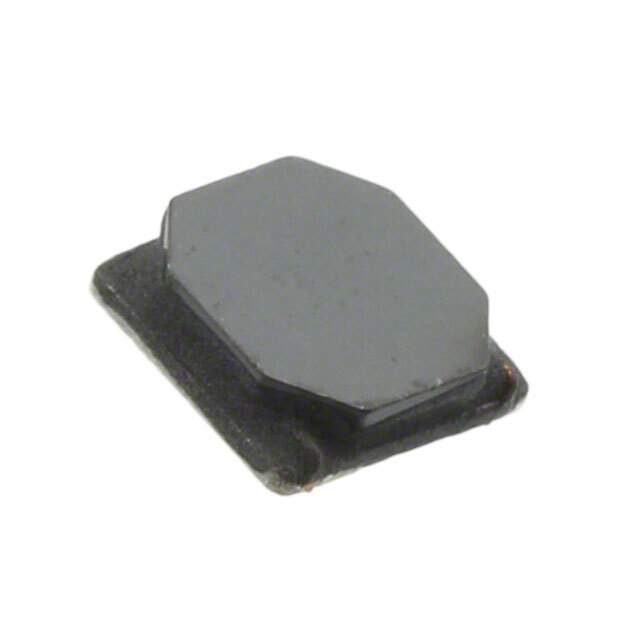

SRN4012T-150M Real Image
Same model may have multiple batches, images only for reference.

SRN4012T-150M

Part No SRN4012T-150M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4012T-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4012T
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 750 mA
Current - Saturation (Isat) 650mA
Shielding Semi-Shielded
DC Resistance (DCR) 260mOhm
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 24MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRN4012T
Other Names SRN4012T-150M-TR,SRN4012T-150M-DKR,SRN4012T-150M-CT
Standard Package 4,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274355-SRN4012T-150M
Ultra Librarian 3D Model Ultra Librarian SRN4012T-150M CAD Model

Description

The Bourns Inc. SRN4012T drum core, wirewound inductor is a semi-shielded component with an inductance of 15 µH and a current rating of 750 mA.

  • Tolerance: ±20%
  • Q: 10 @ 100kHz
  • DC Resistance (DCR): 260mOhm
  • Package: Tape and Reel
  • Mounting: SMD (SMT)
  • Height Seated: 0.047" (1.20mm)
  • Core Material: Ferrite
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
