Same model may have multiple batches, images only for reference.

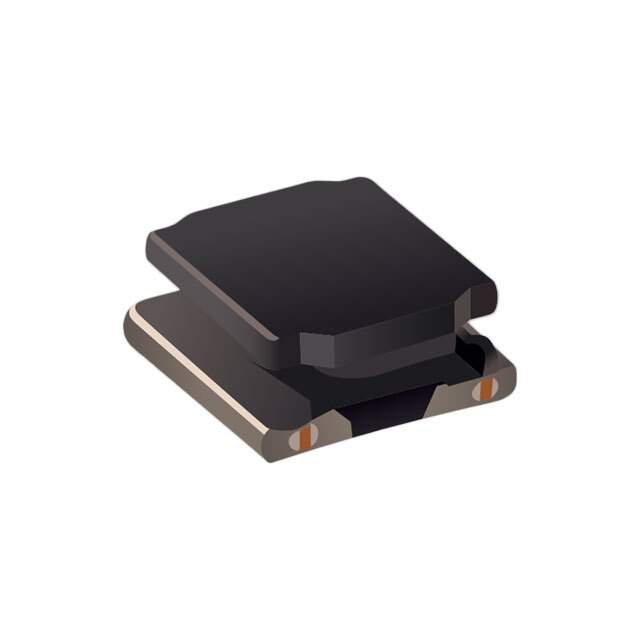

SRN4018TA-2R2M Real Image
Same model may have multiple batches, images only for reference.

SRN4018TA-2R2M

Part No SRN4018TA-2R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4018TA-2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4018TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 3A
Shielding Semi-Shielded
DC Resistance (DCR) 42mOhm
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 90MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Base Product Number SRN4018TA
Other Names SRN4018TA-2R2MDKR,SRN4018TA-2R2MTR,SRN4018TA-2R2MCT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274334-SRN4018TA-2R2M
Ultra Librarian 3D Model Ultra Librarian SRN4018TA-2R2M CAD Model

Description

The SRN4018TA-2R2M inductor from Bourns is a drum core, wirewound inductor that comes in a semi-shielded package.

  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • DC Resistance: 42mOhm
  • Current Rating: 2.2 A
  • Q @ Freq: 10 @ 100kHz
  • Frequency of Self-Resonant: 90MHz
  • Operating Temperature Range: -40°C to 125°C
  • Material: Ferrite
  • Package: Non-standard
  • Mounting: SMD (SMT)
  • AEC-Q200: Rated
