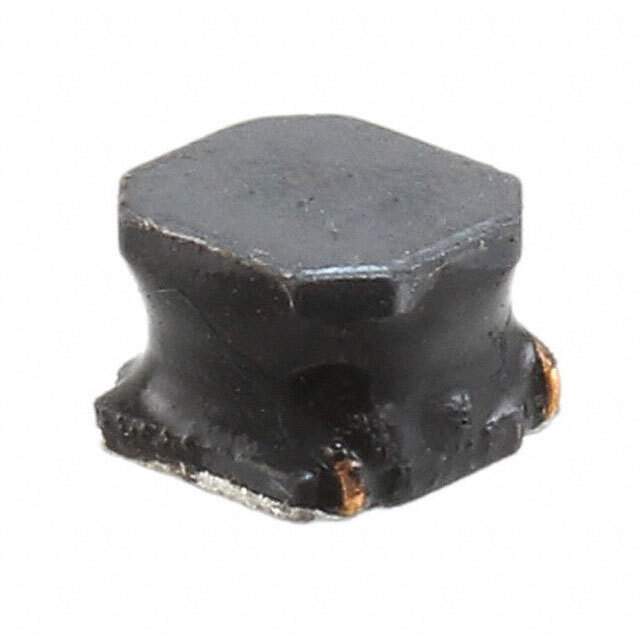

SRN5040-8R2M Real Image
Same model may have multiple batches, images only for reference.

SRN5040-8R2M

Part No SRN5040-8R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN5040-8R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN5040
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 2.4A
Shielding Semi-Shielded
DC Resistance (DCR) 65mOhm Max
Q @ Freq 15 @ 7.96MHz
Frequency - Self Resonant 18MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRN5040
Other Names SRN5040-8R2MDKR,SRN5040-8R2MTR,SRN5040-8R2MCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274298-SRN5040-8R2M
Ultra Librarian 3D Model Ultra Librarian SRN5040-8R2M CAD Model

Description

The Bourns SRN5040-8R2M is a fixed inductor that has a semi-shielded drum core and wirewound type.

  • Inductance: 8.2 µH
  • Tolerance: ±20%
  • Mounting: Surface Mount
  • Package: Tape and Reel
  • Operating Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99 compliant
