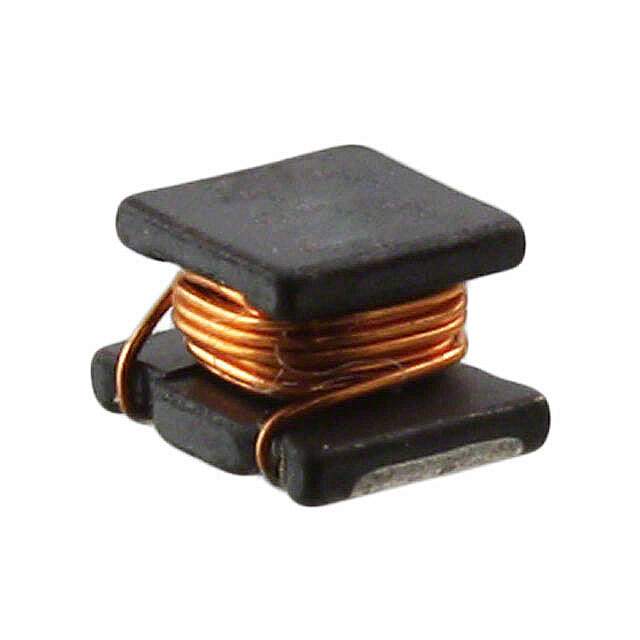

SRN6028-3R3M Real Image
Same model may have multiple batches, images only for reference.

SRN6028-3R3M

Part No SRN6028-3R3M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN6028
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 3.4 A
Current - Saturation (Isat) 3.6A
Shielding Semi-Shielded
DC Resistance (DCR) 34mOhm Max
Q @ Freq 12 @ 7.96MHz
Frequency - Self Resonant 42MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.110" (2.80mm)
Base Product Number SRN6028
Other Names SRN6028-3R3MDKR,SRN6028-3R3MCT,SRN6028-3R3MTR,2266-SRN6028-3R3M
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274282-SRN6028-3R3M
Ultra Librarian 3D Model Ultra Librarian SRN6028-3R3M CAD Model

Description

The SRN6028-3R3M is a fixed inductor from the SRN6028 series manufactured by Bourns Inc.

  • Inductance: 3.3μH
  • Tolerance: ±20%
  • Current Rating: 3.4A
  • Shielding: Semi-shielded
  • Mounting: SMD (SMT) mounted
  • Packaging: Tape and reel packaging
  • DC Resistance (DCR): 34mOhm Max
  • Q @ Freq: 12 @ 7.96MHz
  • Frequency Self-Resonant: 42MHz
  • Core Material: Ferrite
