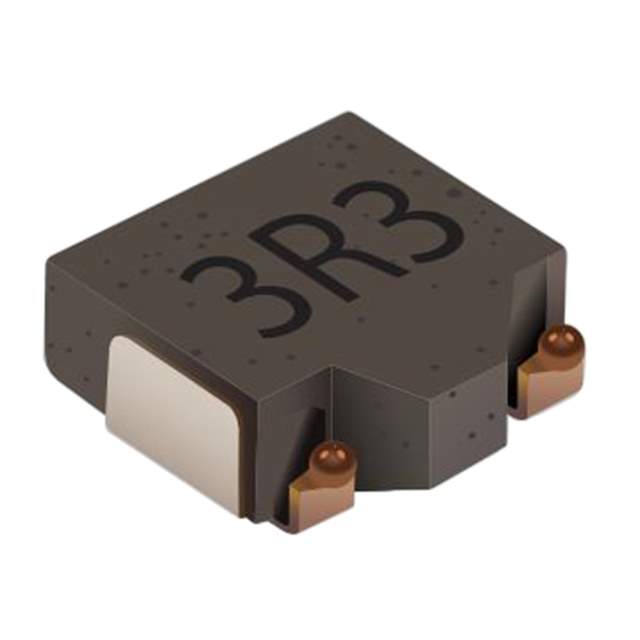

SRP0320-3R3K Real Image
Same model may have multiple batches, images only for reference.

SRP0320-3R3K

Part No SRP0320-3R3K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0320
Package Tape & Reel
Material - Core Metal
Inductance 3.3 µH
Tolerance ±10%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 3.3A
Shielding Shielded
DC Resistance (DCR) 119mOhm Max
Q @ Freq 34 @ 7.96MHz
Frequency - Self Resonant 36MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.134" L x 0.122" W (3.40mm x 3.10mm)
Height - Seated (Max) 0.079" (2.00mm)
Other Names 118-SRP0320-3R3KTR,118-SRP0320-3R3KDKR,118-SRP0320-3R3KCT
Standard Package 2,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274239-SRP0320-3R3K
Ultra Librarian 3D Model Ultra Librarian SRP0320-3R3K CAD Model

Description

The Bourns Inc. SRP0320 fixed inductor is a high-quality component designed for use in a variety of electronic devices.

  • Type: Shielded
  • Material - Core: Metal
  • Inductance: 3.3 µH
  • Current Rating: 2.5 A
  • Height: 0.079" (2.00mm)
  • Package/Case: Nonstandard
  • Dimension: 0.134" L x 0.122" W (3.40mm x 3.10mm)
  • Standard Package: 2,500
  • Tolerance: ±10%
  • Q @ Freq: 34 @ 7.96MHz
  • Frequency Self-Resonant: 36MHz
