Mfr. Part No. Qty. Price

No items in the cart

View Cart
Same model may have multiple batches, images only for reference.

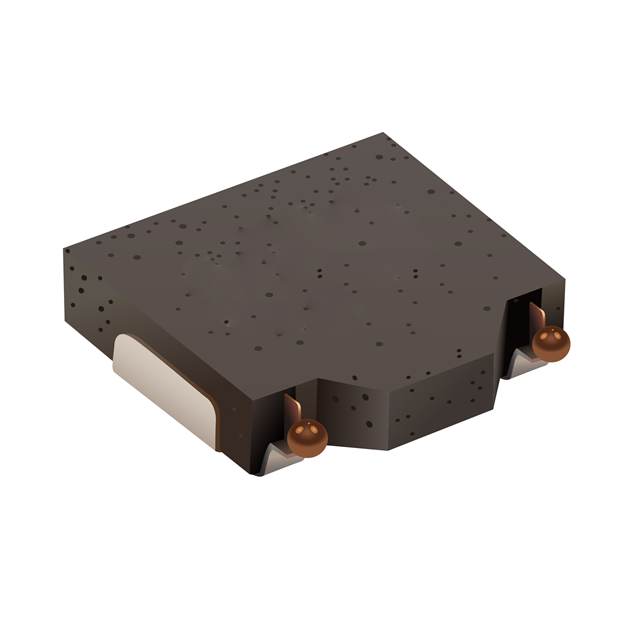

SRP0610-3R3K Real Image
Same model may have multiple batches, images only for reference.

SRP0610-3R3K

Part No SRP0610-3R3K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP0610-3R3K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0610
Package Tape & Reel
Product Status Last Time Buy
Material - Core Metal
Inductance 3.3 µH
Tolerance ±10%
Current Rating (Amps) 3.2 A
Current - Saturation (Isat) 5A
Shielding Shielded
DC Resistance (DCR) 99mOhm Max
Q @ Freq 31 @ 7.96MHz
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.280" L x 0.264" W (7.10mm x 6.70mm)
Height - Seated (Max) 0.039" (1.00mm)
Other Names 118-SRP0610-3R3KTR,118-SRP0610-3R3KCT,118-SRP0610-3R3KDKR
Standard Package 2,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274183-SRP0610-3R3K
Ultra Librarian 3D Model Ultra Librarian SRP0610-3R3K CAD Model

Description

The Bourns Inc. SRP0610-3R3K is a shielded fixed inductor that is used in various applications.

  • Inductance: 3.3 µH
  • Package: Tape & Reel
  • Mounting Type: Surface Mount
  • Tolerance: ±10%
  • Material: Metal
  • Operating Temperature: -40°C to 125°C
  • DC Resistance (DCR): 99 mOhm Max
  • Current Rating: 3.2 A
  • Dimension: 0.280" L x 0.264" W (7.10mm x 6.70mm)
  • Q @ Freq: 31 @ 7.96MHz
  • Frequency-Self Resonant: 20MHz
  • Alternate Names: 118-SRP0610-3R3KTR, 118-SRP0610-3R3KCT, 118-SRP0610-3R3KDKR
  • Status: Last time buy
