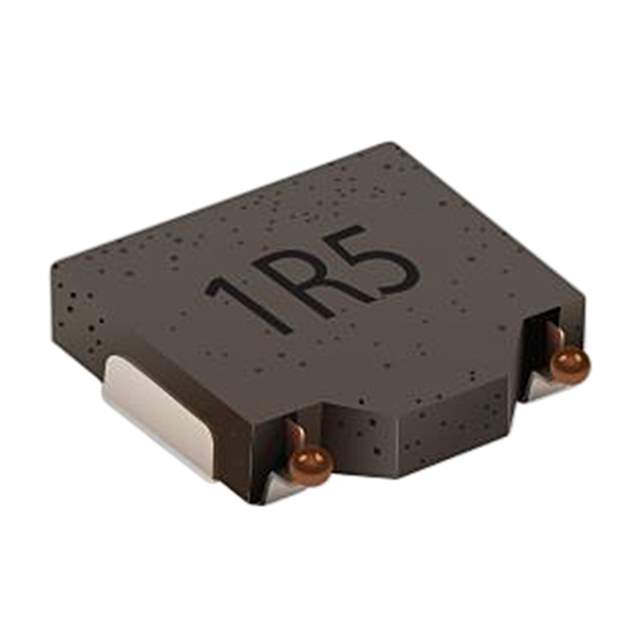

SRP0612-100K Real Image
Same model may have multiple batches, images only for reference.

SRP0612-100K

Part No SRP0612-100K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0612
Package Tape & Reel
Material - Core Metal
Inductance 10 µH
Tolerance ±10%
Current Rating (Amps) 2.7 A
Current - Saturation (Isat) 3A
Shielding Shielded
DC Resistance (DCR) 157mOhm Max
Q @ Freq 26 @ 2.52MHz
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.280" L x 0.264" W (7.10mm x 6.70mm)
Height - Seated (Max) 0.047" (1.20mm)
Other Names 118-SRP0612-100KTR,118-SRP0612-100KDKR,118-SRP0612-100KCT
Standard Package 2,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274178-SRP0612-100K
Ultra Librarian 3D Model Ultra Librarian SRP0612-100K CAD Model

Description

The SRP0612-100K is a fixed inductor manufactured by Bourns Inc.

  • Shielding: Shielded
  • Package: Tape and Reel
  • Inductance: 10 µH
  • Tolerance: ±10%
  • Maximum DC Resistance: 157 mOhm
  • Current Rating: 2.7 A
  • Frequency Range: 100 kHz
  • Q @ Freq: 26 @ 2.52 MHz
  • Self-Resonant Frequency: 10 MHz
  • Dimension: 0.280 inches in length and 0.264 inches in width
