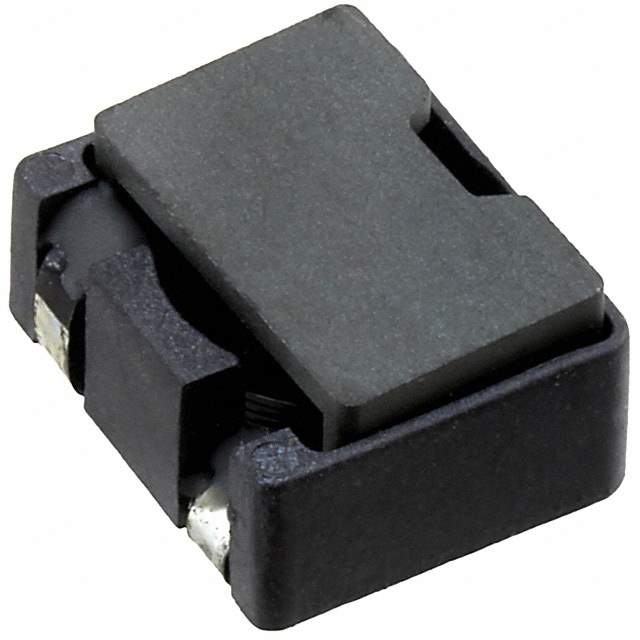

SRP1055-2R2M Real Image
Same model may have multiple batches, images only for reference.

SRP1055-2R2M

Part No SRP1055-2R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1055-2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1055
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 12 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 5.8mOhm Max
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.368" W (11.00mm x 9.35mm)
Height - Seated (Max) 0.228" (5.80mm)
Base Product Number SRP1055
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274117-SRP1055-2R2M
Ultra Librarian 3D Model Ultra Librarian SRP1055-2R2M CAD Model

Description

The SRP1055-2R2M is a shielded fixed inductor from Bourns Inc. with an inductance of 2.2 µH and a tolerance of ±20%.

  • Core Material: Ferrite
  • Temperature Range: -55°C to 150°C
  • DC Resistance: 5.8mOhm Max
  • Current Rating: 12 A
  • Height: 0.228" (5.80mm)
  • Dimension: 0.433" L x 0.368" W (11.00mm x 9.35mm)
  • Packaging: Tape and Reel
  • Standard Package: 600 units
  • Type: Drum core, wirewound
  • Applications: Power supplies, DC-DC converters, and EMI filtering
