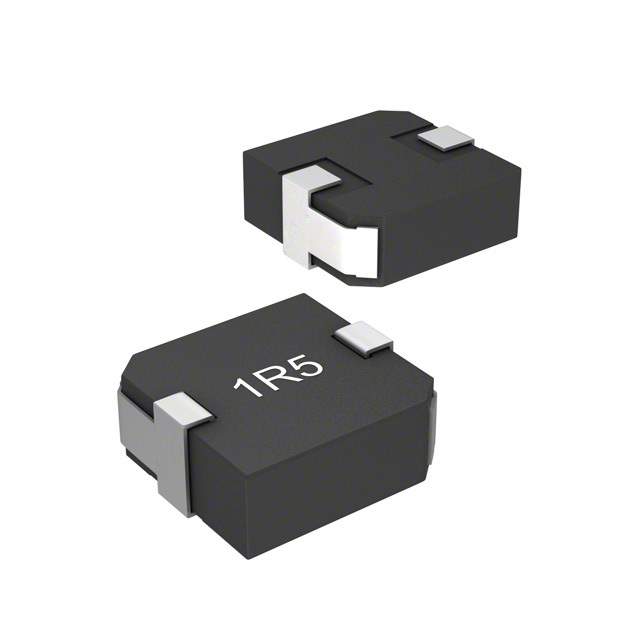

Same model may have multiple batches, images only for reference.

SRP1250-2R2M

Name: SRP1250-2R2M
Brand: Bourns Inc.
SKU: 1274057
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SRP1250-2R2M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1250-2R2M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1250
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	20 A
Current - Saturation (Isat)	32A
Shielding	Shielded
DC Resistance (DCR)	5.5mOhm Max
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Max)	0.232" (5.90mm)
Base Product Number	SRP1250
Other Names	SRP1250-2R2MTR,SRP1250-2R2MDKR,-SRP1250-2R2MCT,SRP12502R2M,-SRP1250-2R2M,SRP1250-2R2MCT,-SRP1250-2R2MTR
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274057-SRP1250-2R2M
Ultra Librarian 3D Model	Ultra Librarian SRP1250-2R2M CAD Model

Alternative Products

Description

The SRP1250-2R2M from Bourns Inc. is a fixed inductor that comes with a drum core and wirewound type.

Package: Tape and Reel
Shielding: Shielded
Tolerance: ±20%
Inductance: 2.2 μH
Current Rating: 20 A
DC Resistance (DCR): 5.5mOhm Max
Temperature Range: -55°C to 150°C
Material: Iron
Size: 0.547" L x 0.531" W (13.90mm x 13.50mm)
