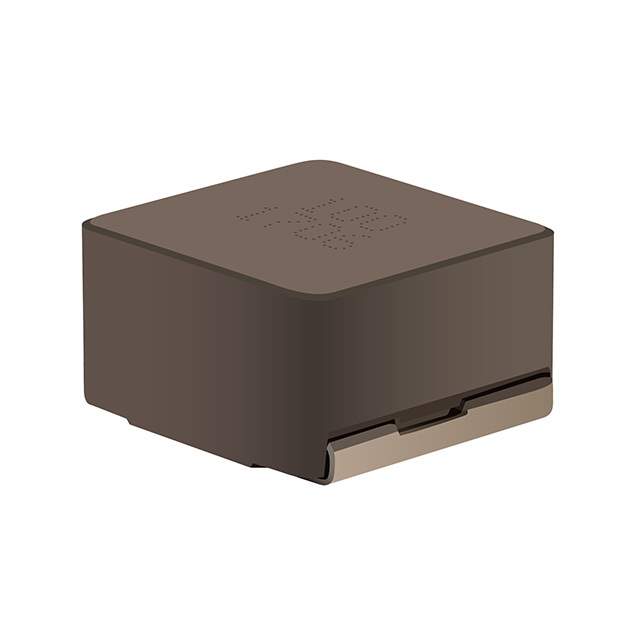

SRP2313AA-680M Real Image
Same model may have multiple batches, images only for reference.

SRP2313AA-680M

Part No SRP2313AA-680M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP2313AA-680M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP2313AA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Alloy Powder
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 12 A
Current - Saturation (Isat) 9A
Shielding Shielded
DC Resistance (DCR) 29.5mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 3MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.925" L x 0.866" W (23.50mm x 22.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Base Product Number SRP2313AA
Other Names SRP2313AA-680MCT,SRP2313AA-680MTR,SRP2313AA-680MDKR
Standard Package 80
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274001-SRP2313AA-680M
Ultra Librarian 3D Model Ultra Librarian SRP2313AA-680M CAD Model

Description

The SRP2313AA-680M is a drum core, wirewound inductor from Bourns Inc.

  • Shielding: Yes
  • Inductance: 68 µH
  • Tolerance: ±20%
  • Height Seated: 0.512" (13.00mm)
  • DC Resistance (DCR): 29.5mOhm Max
  • Rating: AEC-Q200
  • Q @ Freq: 20 @ 100kHz
  • Frequency - Self-Resonant: 3MHz
  • Mounting: SMD (SMT)
  • Package/Case: Non-standard
  • Operating Temperature Range: -55°C to 155°C
  • Current Rating (amps): 12A
  • Current Saturation (Isat): 9A
