Same model may have multiple batches, images only for reference.

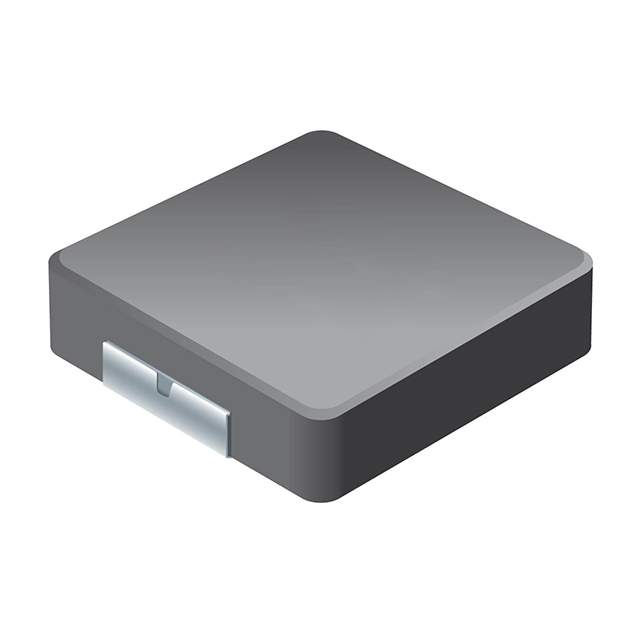

SRP3020TA-R10Y Real Image
Same model may have multiple batches, images only for reference.

SRP3020TA-R10Y

Part No SRP3020TA-R10Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP3020TA-R10Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 100 nH
Tolerance ±30%
Current Rating (Amps) 10.5 A
Current - Saturation (Isat) 14A
Shielding Shielded
DC Resistance (DCR) 9mOhm Max
Q @ Freq 5 @ 100kHz
Frequency - Self Resonant 340MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP3020TA
Other Names SRP3020TA-R10YTR,SRP3020TA-R10YDKR,SRP3020TA-R10YCT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273950-SRP3020TA-R10Y
Ultra Librarian 3D Model Ultra Librarian SRP3020TA-R10Y CAD Model

Description

The SRP3020TA-R10Y is a drum core wirewound inductor from Bourns Inc.

  • Shielding: Shielded
  • Inductance: 100 nH
  • Tolerance: ±30%
  • DC Resistance (DCR): 9 mOhm max
  • Current Rating: 10.5 A
  • Q @ Freq: 5 @ 100 kHz
  • Frequency of Self-Resonant: 340 MHz
  • AEC-Q200 rated: Yes
  • Package: 2-SMD
  • Mounting: SMD (SMT)
  • Operating Temperature: from -40°C to 150°C
