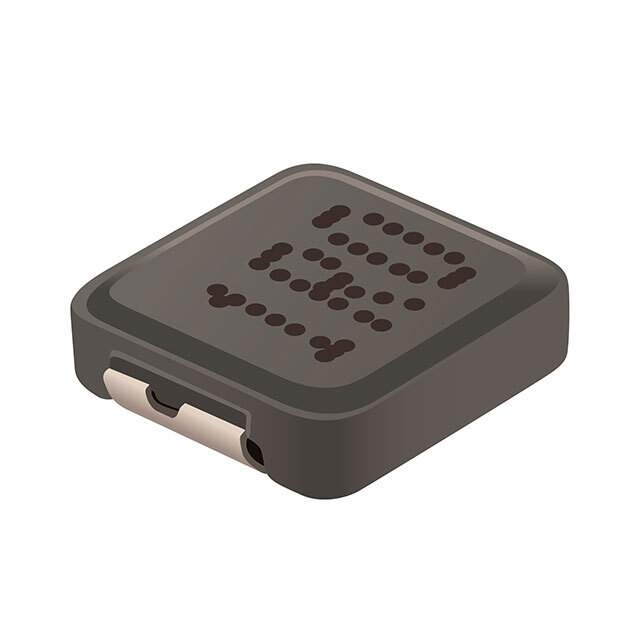

SRP5015TA-R47M Real Image
Same model may have multiple batches, images only for reference.

SRP5015TA-R47M

Part No SRP5015TA-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP5015TA-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP5015TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 15A
Shielding Shielded
DC Resistance (DCR) 13.8mOhm Max
Q @ Freq 5 @ 100kHz
Frequency - Self Resonant 110MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number SRP5015TA
Other Names SRP5015TA-R47MCT,SRP5015TA-R47MDKR,SRP5015TA-R47MTR
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273906-SRP5015TA-R47M
Ultra Librarian 3D Model Ultra Librarian SRP5015TA-R47M CAD Model

Description

The Bourns Inc. SRP5015TA-R47M is a drum core, wirewound fixed inductor suitable for various applications.

  • Win Source Part Number: 1273906
  • Series: SRP5015TA
  • Shielding: Shielded
  • Package: Tape and Reel
  • Temperature Range: -55°C to 150°C
  • Current Rating: 8A
  • Standard Package: 3,500
